Celestion Tf1225E 300W 8Ohm Lf Ferrite
115,00 €
Spedizione Gratuita
Esaurito
La spedizione avviene con corriere espresso al costo di 9 €. Per ordini superiori a 89 € la spedizione è gratuita con calcolo automatico al checkout
La consegna avviene in 24/72 ore dall’ordine
In base alle normative vigenti i prodotti nuovi godono della garanzia biennale mentre l’usato della garanzia di un anno. Entro 14 giorni è possibile esercitare il diritto di reso con successivo rimborso
Le modalità di pagamento sono:
- Bonifico Bancario
- Paypal
- Paypal 3 Rate
- Carta di debito/credito o prepagata
- Ritiro in sede (contanti o carta)
- 3 rate mensili con sistema Scalapay (ordini dai 20 € ai 1.500 € ad interessi 0)
EAN: 0739894532358
BRAND: Celestion
SCHEDA PRODOTTO

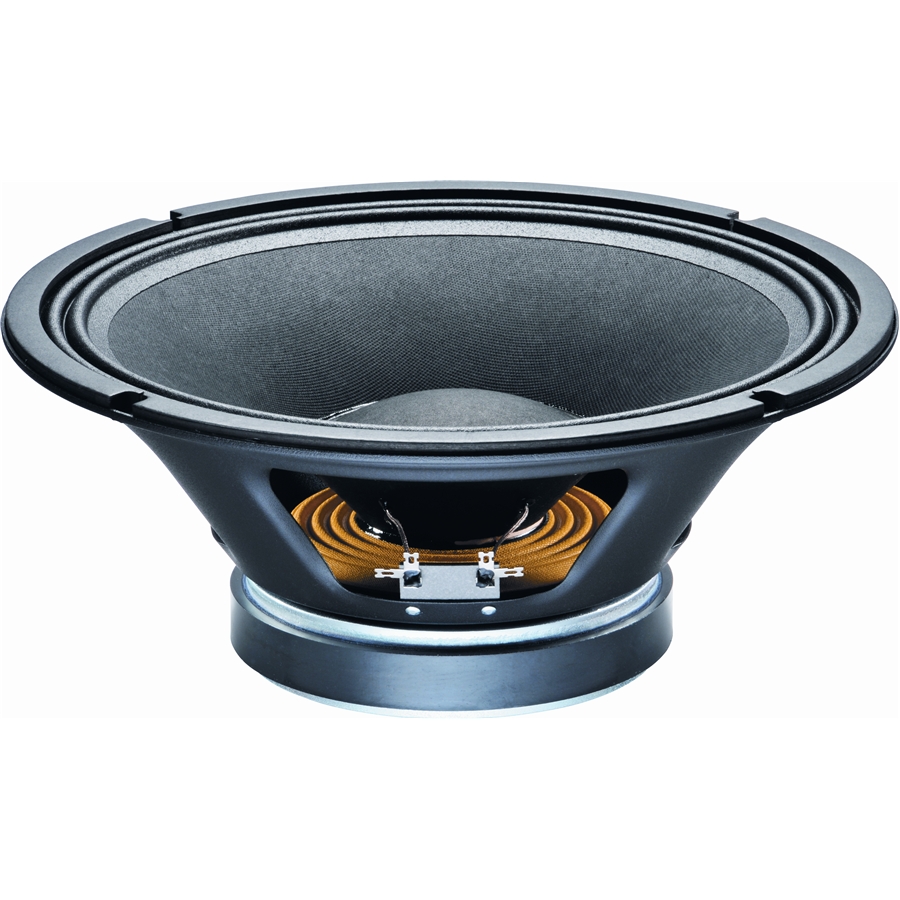

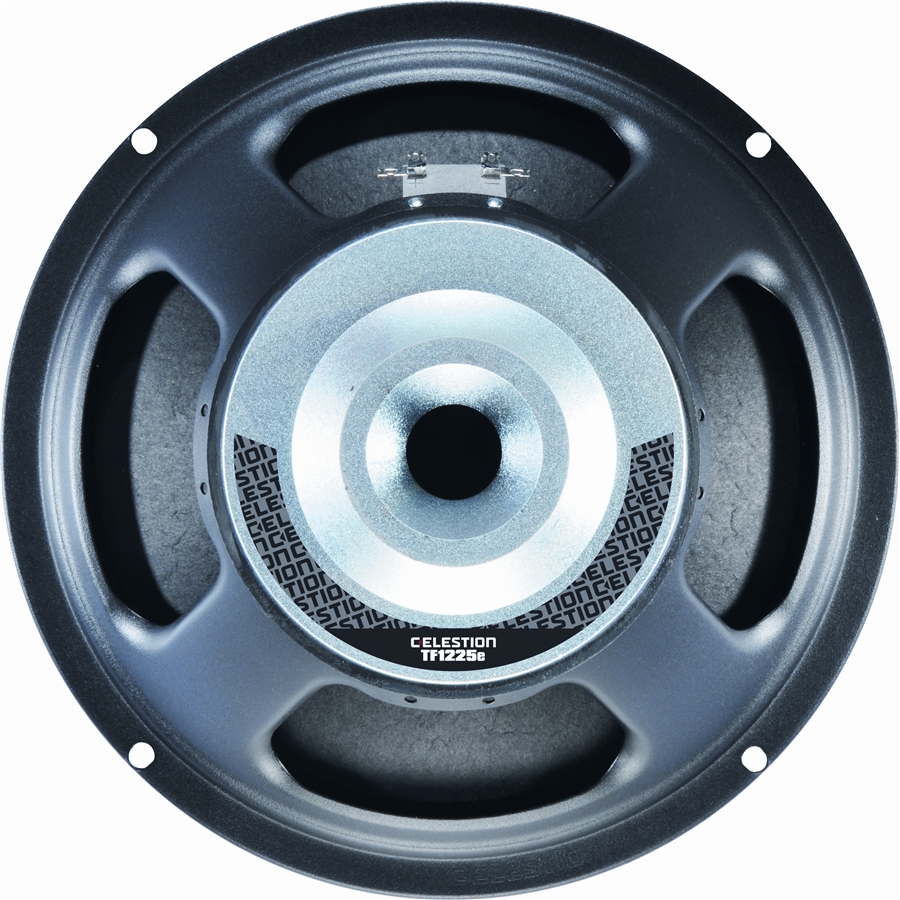

Celestion – TF1225e 300W 8ohm – LF Pressed Steel Chassis Loudspeaker – Ferrite
Altoparlante da 12′ con chassis in acciaio stampato, magnete in ferrite, bobina da 2.5′, potenza 300Watt, impedenza 8ohm
Caratteristiche
– 12′ Bass and mid-range driver with extended low frequency response
– 2.5′ edgewound voice coil provides 96dB sensitivity and 300Wrms (AES standard) power handling
– Kevlar-loaded cone with sealed surround and damping for reduced distortion
– Double roll surround for greater excursion control
– Suitable for use in 2-way and compact 3-way systems
Specifiche Generali
Nominal diameter: 305mm/12in
Power rating(1): 300Wrms
Continuous power rating(2): 600W
EIA power rating(3): 450W
Nominal impedance: 8ohm
Sensitivity(4): 96dB
Frequency range: 50-3000Hz
Voice coil diameter: 64mm/2.5in
Chassis type: Pressed steel
Magnet type: Ferrite
Magnet weight: 1.4kg/50oz
Coil material: Edgewound copper
Former material: Polyimide
Cone material: Kevlar loaded paper
Surround material: Cloth-sealed
Suspension: Single
Xmax(5): 3.5mm/0.14in
Gap depth: 8mm/0.31in
Voice coil winding width: 14.5mm/0.57in
Parametri di Thiele-Small
D: 0.26m/10.24in
Fs: 61.2Hz
Mms: 53.24g/1.88oz
Qms: 4.80
Qes: 0.44
Mmd: 46.31g/1.63oz
Qts: 0.40
Re: 5.07ohm
Vas: 50.6lt/1.79ft3
BI: 15.41Tm
Cms: 0.13mm/N
Rms: 4.27kg/s
Le (at 1kHz): 1.1mH
Informazioni di Montaggio
Overall diameter: 309mm/12.17in
Overall depth: 139mm/5.47in
Cut-out diameter: 283mm/11.14in
Mounting slot dimensions: Ø7.9mm/0.31in
Number of mounting slots: 4
Mounting PCD range: 297mm/11.69in
Unit weight: 4.4kg/9.7lb
Note
(1)Tested for two hours using a continuous, band-limited pink noise signal as per AES standard. Power calculated on minimum impedance. Loudspeaker tested in free air.
(2)Continuous Power Handling is defined as 3dB greater than the AES rating.
(3)Tested as per the EIA-426-A standard.
(4)Measured on axis at 1W, 1m in 2pi anechoic environment.
(5)Xmax derived from: (voice coil winding width-gap depth)/2.
(6)Small signal parameters measured after unit subjected to pre-conditioning signal.
Per una panoramica su tutta la serie Celestion TF Ferrite, clicca qui
