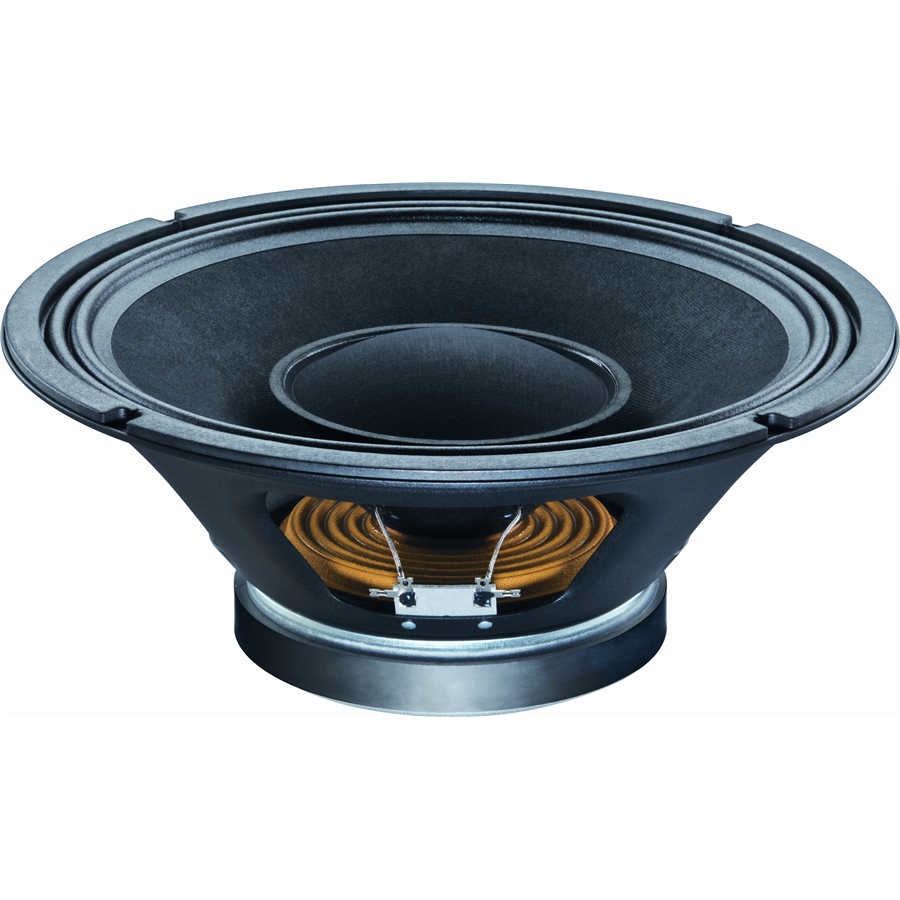

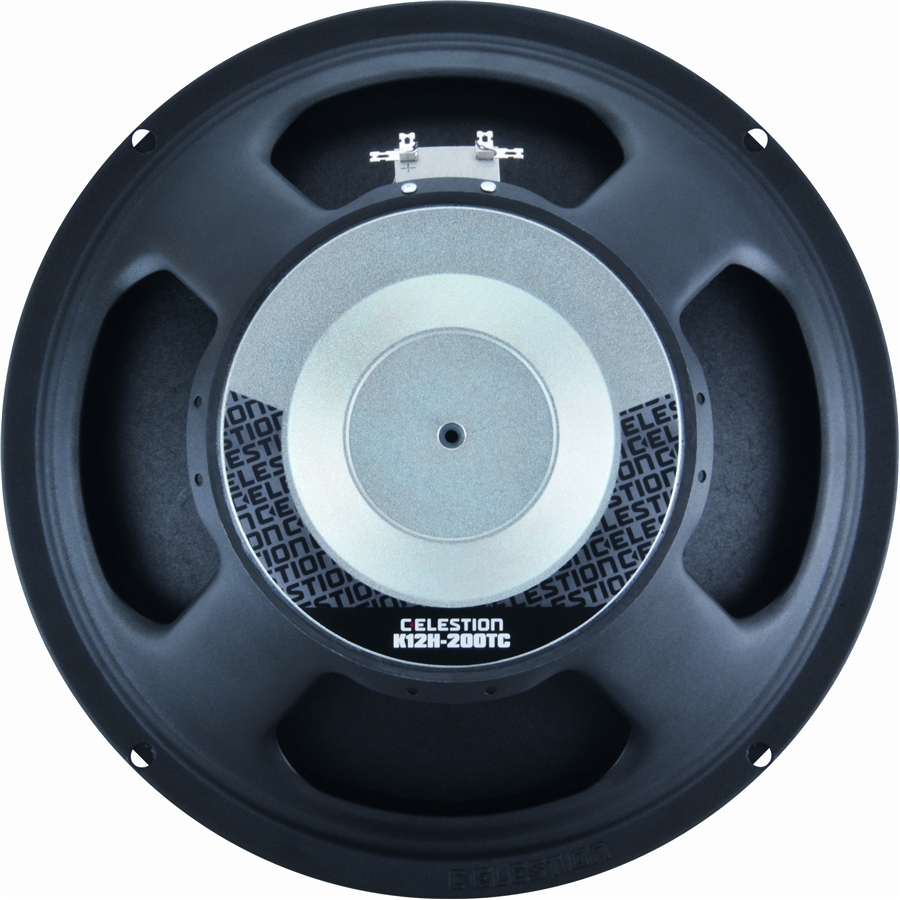

Celestion – K12H-200TC 200W 8ohm – Twin Cone
Altoparlante doppio cono da 12′ con chassis in acciaio stampato, magnete in ferrite, bobina da 2′, potenza 200Watt, impedenza 8ohm
Caratteristiche
– 12′ twin cone drive unit with extended high frequency response
– 2′ high temperature copper voice coil for increased reliability and 200Wrms (AES standard) power handling
– Optimised cone neck/voice coil assembly for increased strength, minimising high frequency distortion and improving sound quality
– Secondary cone terminated by pressure formed cloth dust cap for enhanced mid-band clarity
– High efficiency magnet structure design delivers improved sensitivity
– Double roll surround for greater excursion control and smooth frequency response
Specifiche Generali
Size: 305mm/12in
Power rating(1): 200Wrms
Nominal impedance: 8ohm
Sensitivity(2): 98dB
Frequency range: 50-10,000Hz
Voice coil diameter: 50mm/2in
Chassis type: Pressed steel
Magnet type: Ferrite
Magnet weight: 1.41kg/50oz
Coil material: Round copper
Former material: Polyimide
Cone material: Kevlar loaded paper
Surround material: Cloth-sealed
Suspension: Single
Xmax(3): 2mm/0.08in
Gap depth: 8mm/0.31in
Voice coil winding width: 12mm/0.47in
Parametri di Thiele-Small
D: 0.26m/10.24in
Fs: 60.0Hz
Mms: 46.514g/1.64oz
Qms: 4.585
Qes: 0.583
Mmd: 39.592g/1.39oz
Qts: 0.481
Re: 5.61ohm
Vas: 60.3lt/2.13ft3
BI: 13.535 Tm
Cms: 0.151mm/N
Rms: 3.826 kg/s
Le (at 1kHz): 0.683 mH
Informazioni di Montaggio
Diameter: 309mm/12.2in
Overall depth: 130.25mm/5.14in
Cut-out diameter: 283mm/11.14in
Mounting slot dimensions: Ø7.9mm/0.31in
Number of mounting slots: 4
Mounting PCD range: 297mm/11.69in
Unit weight: 3.9kg/8.6lb
Note
(1)Tested for two hours using a continuous, band-limited pink noise signal as per AES standard. Power calculated on minimum impedance. Loudspeaker tested in free air.

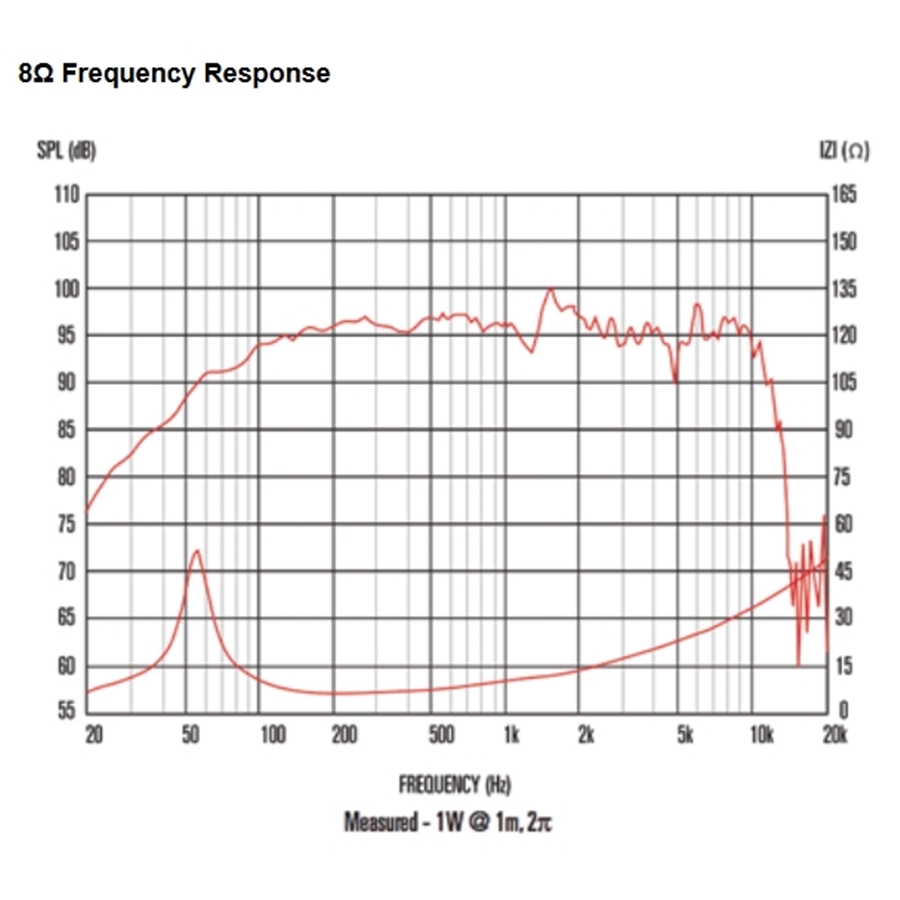

(2)Measured on axis at 1W, 1m in 2pi anechoic environment.
(3)Xmax derived from: (voice coil winding width-gap depth)/2.
