Celestion K12H-100Tc 100W 8Ohm Twin Cone
83,00 €
Esaurito
La spedizione avviene con corriere espresso al costo di 9 €. Per ordini superiori a 89 € la spedizione è gratuita con calcolo automatico al checkout
La consegna avviene in 24/72 ore dall’ordine
In base alle normative vigenti i prodotti nuovi godono della garanzia biennale mentre l’usato della garanzia di un anno. Entro 14 giorni è possibile esercitare il diritto di reso con successivo rimborso
Le modalità di pagamento sono:
- Bonifico Bancario
- Paypal
- Paypal 3 Rate
- Carta di debito/credito o prepagata
- Ritiro in sede (contanti o carta)
- 3 rate mensili con sistema Scalapay (ordini dai 20 € ai 1.500 € ad interessi 0)
BRAND: Celestion
SCHEDA PRODOTTO

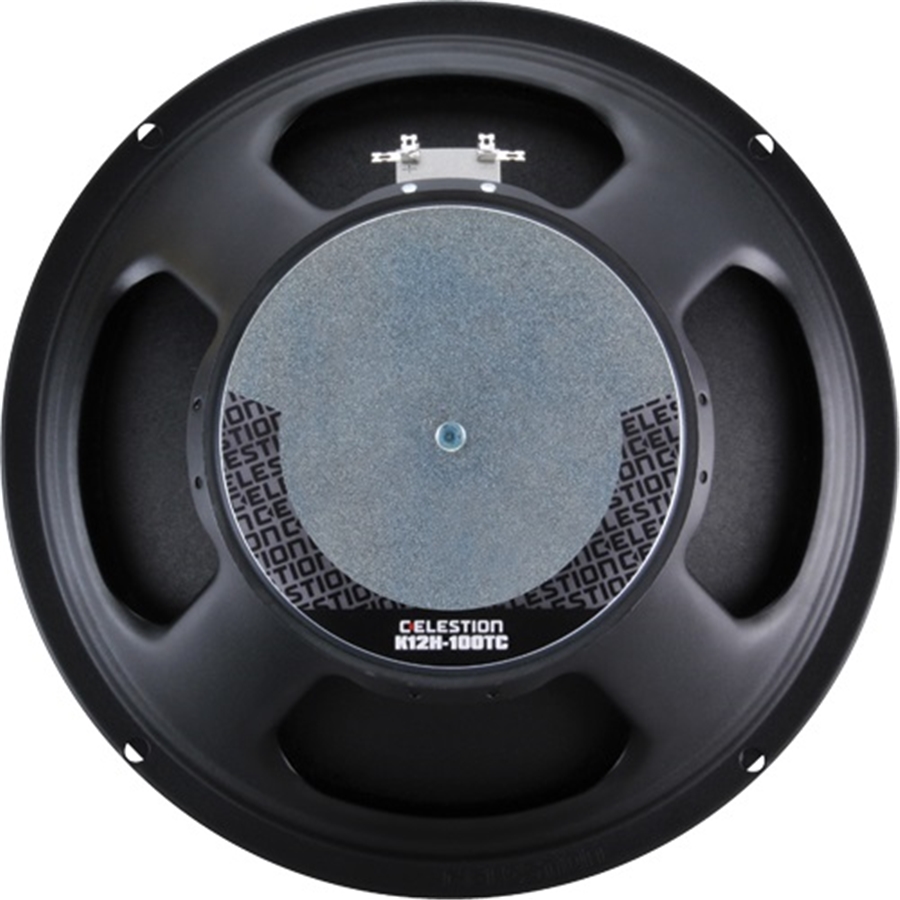

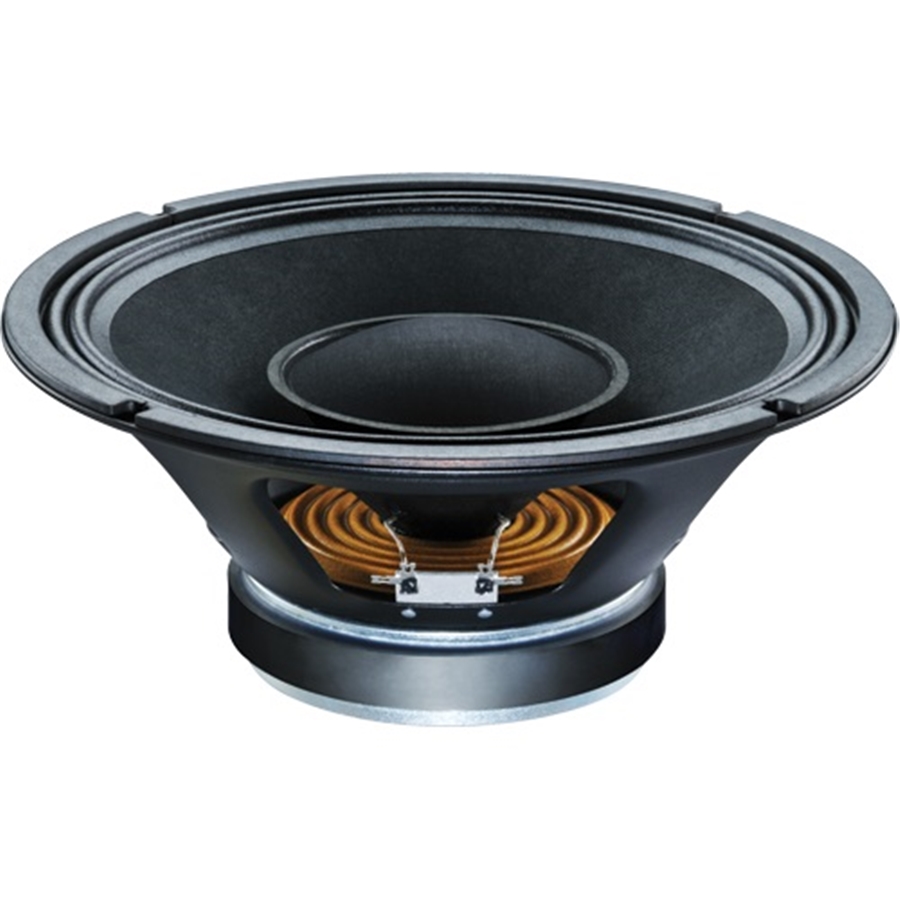

Celestion – K12H-100TC 100W 8ohm – Twin Cone
Altoparlante doppio cono da 12′ con chassis in acciaio stampato, magnete in ferrite, bobina da 1.75′, potenza 100Watt, impedenza 8ohm
Caratteristiche
– 12′ twin cone drive unit with extended high frequency response
– 1.75′ high temperature copper voice coil for increased reliability and 100Wrms (AES standard) power handling
– Optimised cone neck/voice coil assembly for increased strength, minimising high frequency distortion and improving sound quality
– Secondary cone terminated by pressure formed cloth dust cap for enhanced mid-band clarity
– High efficiency magnet structure design delivers improved sensitivity
– Double roll surround for greater excursion control and smooth frequency response
Specifiche Generali
Size: 305mm/12in
Power rating(1): 100Wrms
Nominal impedance: 8ohm
Sensitivity(2): 97dB
Frequency range: 50-10,000Hz
Voice coil diameter: 45mm/1.75in
Chassis type: Pressed steel
Magnet type: Ferrite
Magnet weight: 1.41kg/50oz
Coil material: Round copper
Former material: Kapton
Cone material: Kevlar loaded paper
Surround material: Cloth-sealed
Suspension: Single
Xmax: 1mm/0.04in
Gap depth: 8mm/0.31in
Voice coil winding width: 10mm/0.39in
Parametri di Thiele-Small
D: 0.26m/10.24in
Fs: 67.5Hz
Mms: 43.669g/1.54oz
Qms: 5.381
Qes: 0.581
Mmd: 36.747g/1.30oz
Qts: 0.525
Re: 5.43ohm
Vas: 50.7lt/1.79ft3
BI: 13.16Tm
Cms: 0.127mm/N
Rms: 3.443kg/s
Le (at 1kHz): 0.625mH
Informazioni di Montaggio
Diameter: 309mm/12.17in
Overall depth: 129.7mm/5.11in
Cut-out diameter: 283mm/11.14in
Mounting slot dimensions: Ø7.9mm/0.31in
Number of mounting slots: 4
Mounting PCD range: 297mm/11.69in
Unit weight: 3.8kg/8.4lb
Note
(1)Tested for two hours using a continuous, band-limited pink noise signal as per AES standard. Power calculated on minimum impedance. Loudspeaker tested in free air.
(2)Measured on axis at 1W, 1m in 2pi anechoic environment.
(3)Xmax derived from: (voice coil winding width-gap depth)/2.
