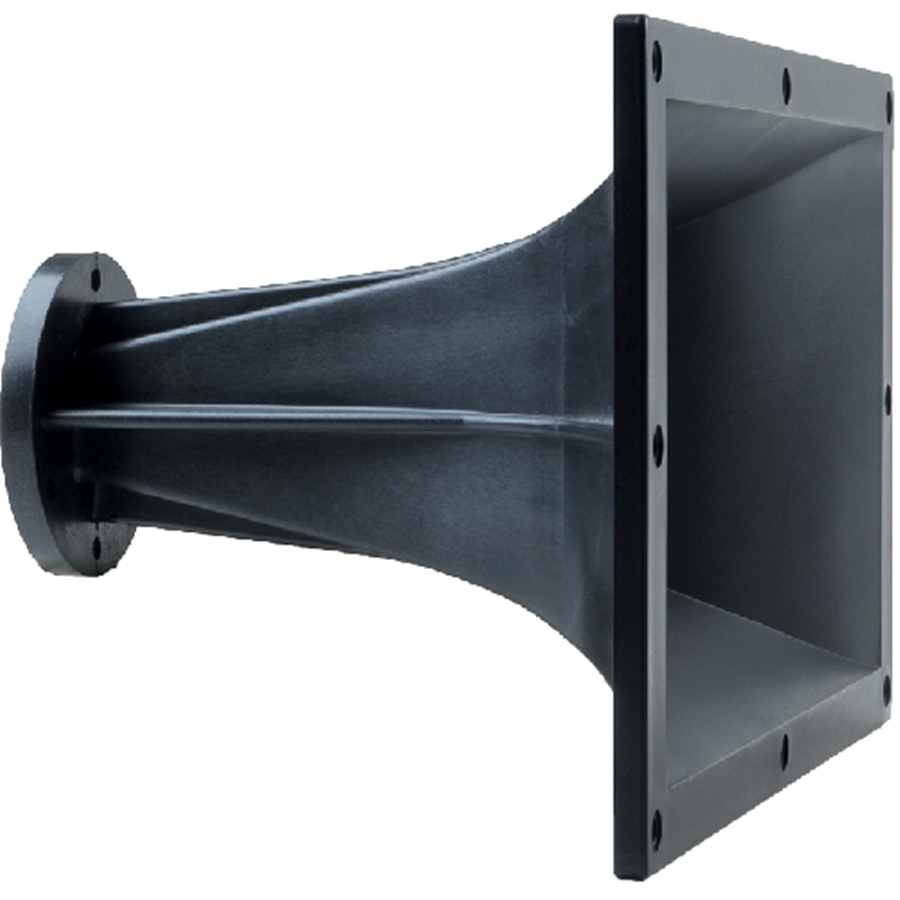

Celestion – H1-9040P Horn
Tromba esponenziale 90°x40° in materiale plastico per driver a compressione con uscita da 1′
Caratteristiche
– Lightweight horn flare with 1′ throat exit
– Compatible for use with bolt (flange) fitted compression drivers only
– Exponential horn flare with 90° x 40° radiation pattern
– 1.5kHz cut-off frequency
– Hard-wearing reinforced polymer
Specifiche Generali
Horn type: Exponential
Radiation pattern: 90°x40°
Horn material: Plastic
Baffle cut-out: 165mm/9in x 260mm/14.2in
Driver mounting detail: 2/3 M6 holes on 76/57mm, 3/2.2in PCD
Throat exit: 25.4mm/1in
Height: 199mm/7.8in
Width: 318mm/12.5in
Depth: 208mm/8.2in
Weight: 0.66kg/1.45lb
Driver a compressione compatibili
CDX1-1747, CDX1-1742, CDX1-1745, CDX1-1730,
CDX1-1720, CDX1-1447, CDX1-1445, CDX1-1440,
CDX1-1430, CDX1-1425, CDX1-1415, CDX1-1070
