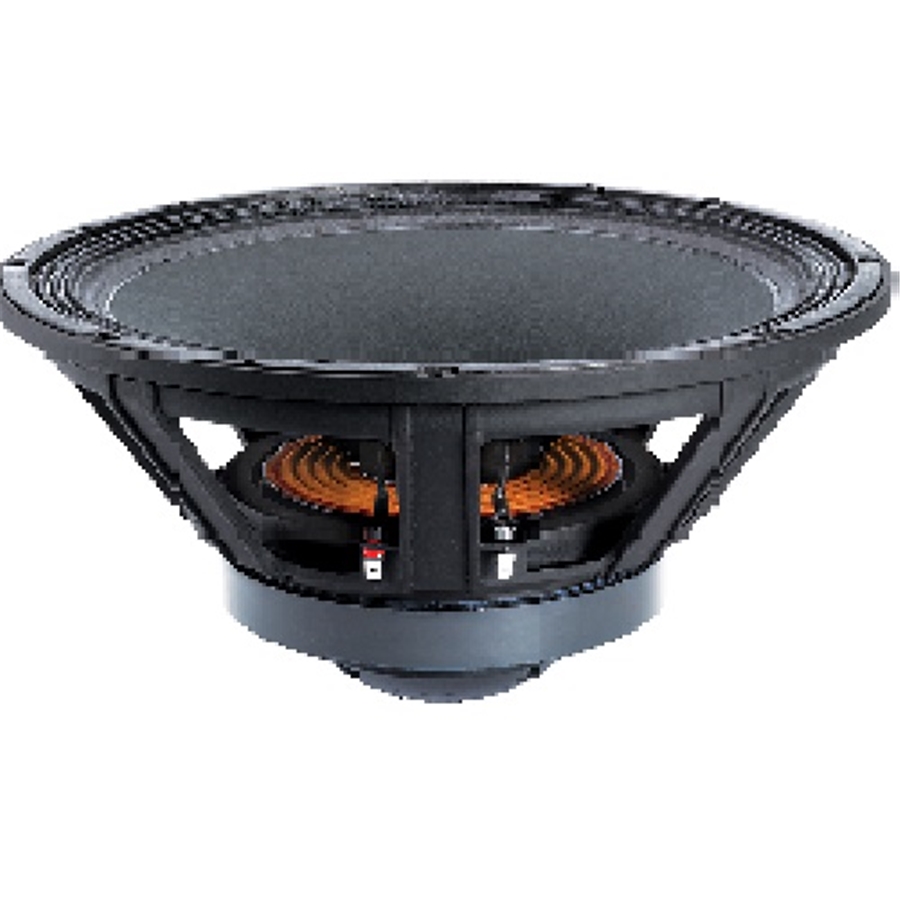

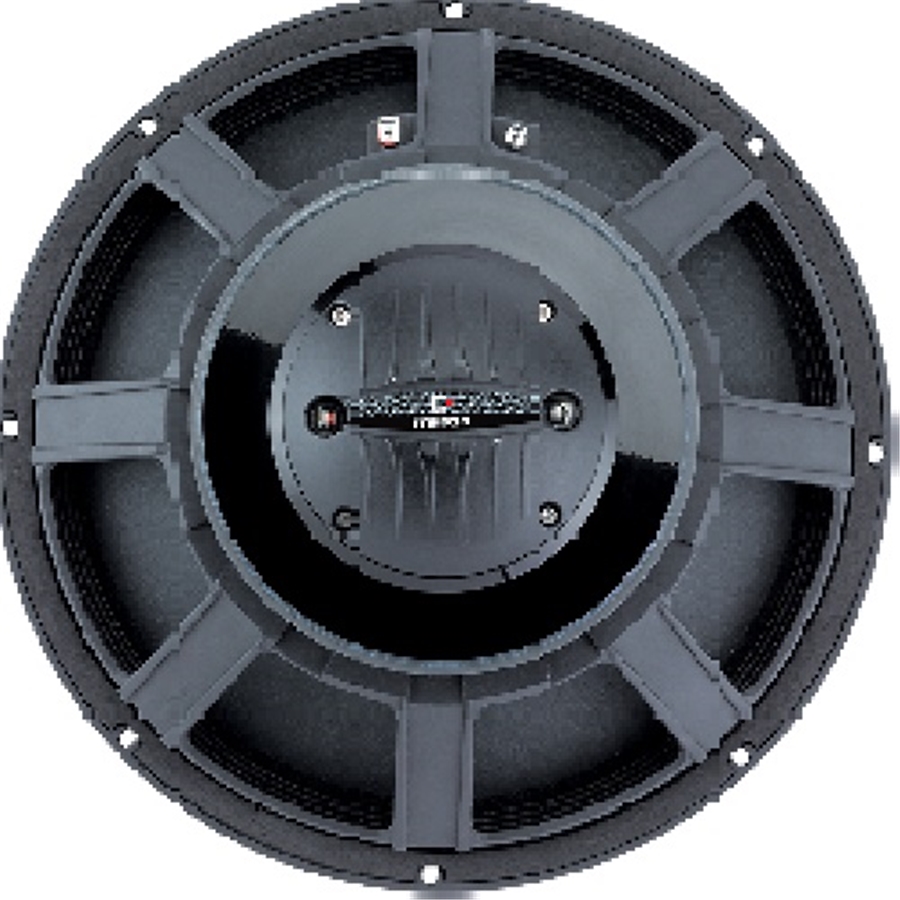

Celestion – FTX1530 400W 8ohm – Coaxial
Altoparlante coassiale da 15′ con chassis in fusione d’alluminio, magnete in ferrite, bobina da 3′, potenza 400Watt, impedenza 8ohm
Caratteristiche
– Ferrite magnet assembly acts as common motor for both LF and HF
– Titanium HF diaphragm
– Demodulation ring
– 90° nominal HF coverage
– HF repair kit available
Specifiche Generali
Size: 381mm/15in
Power rating(1): 400Wrms
Continuous power rating(2): 800W
Nominal impedance: 8ohm
Sensitivity(3): 97dB
Frequency range: 40-4,000Hz
Voice coil diameter: 75mm/3in
Chassis type: Cast Aluminium
Magnet type: Ferrite
Magnet weight: 2.3kg/81oz
Coil material: Edgewound copper clad aluminium
Former material: Glass fibre
Cone material: Kevlar loaded paper
Surround material: Cloth-sealed
Suspension: Single
Xmax(4): 4mm/0.16in
Gap depth: 8mm/0.31in
Voice coil winding width: 16mm/0.63in
Parametri di Thiele-Small
D: 0.33m/12.99in
Fs: 42.5Hz
Mms: 84.29g/2.97oz
Qms: 3.809
Qes: 0.297
Qts: 0.28
Re: 5.36Ω
Vas: 172.0716.08ft3
BI: 20.16Tm
Cms: 0.17mm/N
Rms: 5.91kg/s
Le (at 1kHz): 0.82mH
Specifiche Generali HF
Power rating(5): 75Wrms
Continuous power rating(6): 150W
Nominal impedance: 8ohm
Sensitivity: 106.5dB
Frequency range: 800-18,000Hz
Recommended min. crossover (12dB/oct): 1,000Hz
Voice coil diameter: 75mm/3in
Magnet type: Dual ferrite magnet motor
Diaphragm and surround material: Titanium/Polyimide
Informazioni di Montaggio
Diameter: 387mm/15.24in
Overall depth: 176mm/6.93in
Cut-out diameter: 351mm/13.82in
Mounting slot dimensions: 10 x 7mm/0.39 x 0.27in
Number of mounting slots: 8
Mounting PCD range: 365-375mm/14.37-14.76in
Unit weight: 6.5kg/14.3lb
Note
(1)Tested for two hours using a continuous, band-limited pink noise signal as per AES standard.
Power calculated on minimum impedance.
Loudspeaker tested in free air.
(2)Continuous Power Rating is defined as 3dB greater than the AES rating.
(3)Measured on axis at 1W, 1m in 2Π anechoic environment.
(4)Xmax derived from: (voice coil winding width-gap depth)/2.
(5)Tested for two hours on plane wave tube using a continuous, band-limited pink noise signal as per AES standard.
Power calculated on minimum impedance.
(6)Continuous Power Handling is defined as 3dB greater than the AES rating.
Fornito senza Crossover
Per una panoramica su tutta la serie Celestion Coaxial, clicca qui
Gli speaker della serie Celestion FTX sono driver per altoparlanti coassiali full-range. Hanno un singolo gruppo magnetico che guida sia gli elementi a bassa che quelli ad alta frequenza per un segnale di uscita più coerente. I vantaggi includono anche un peso inferiore e dimensioni più compatte.
