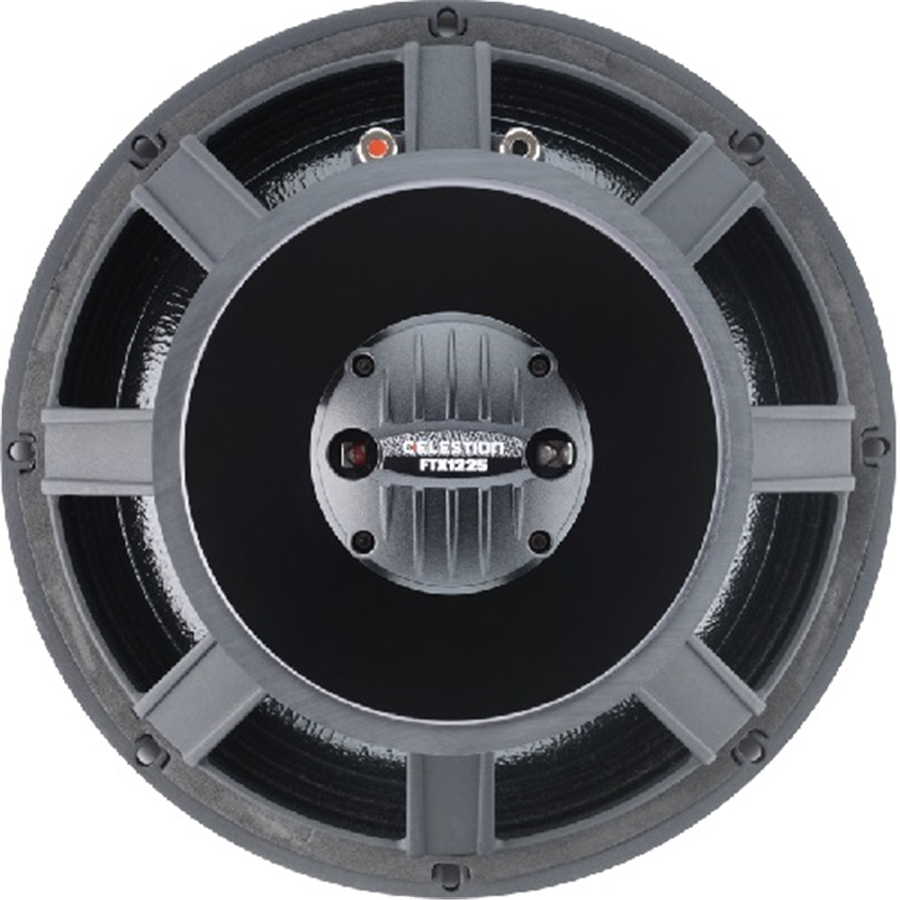

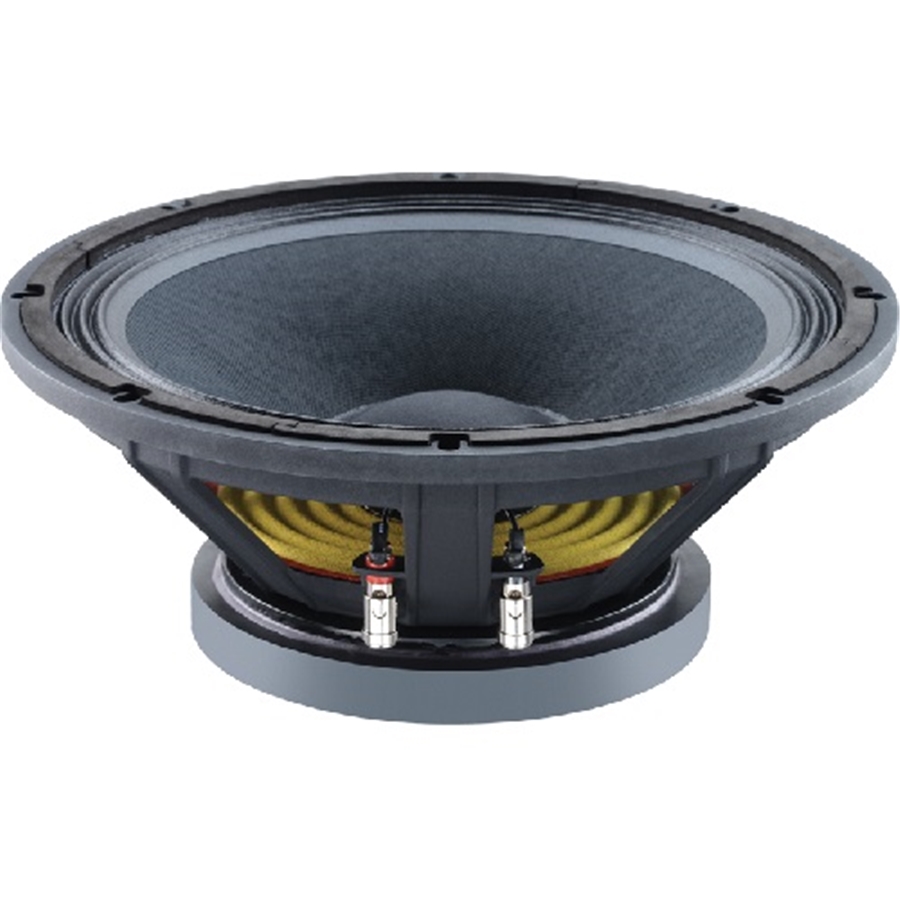

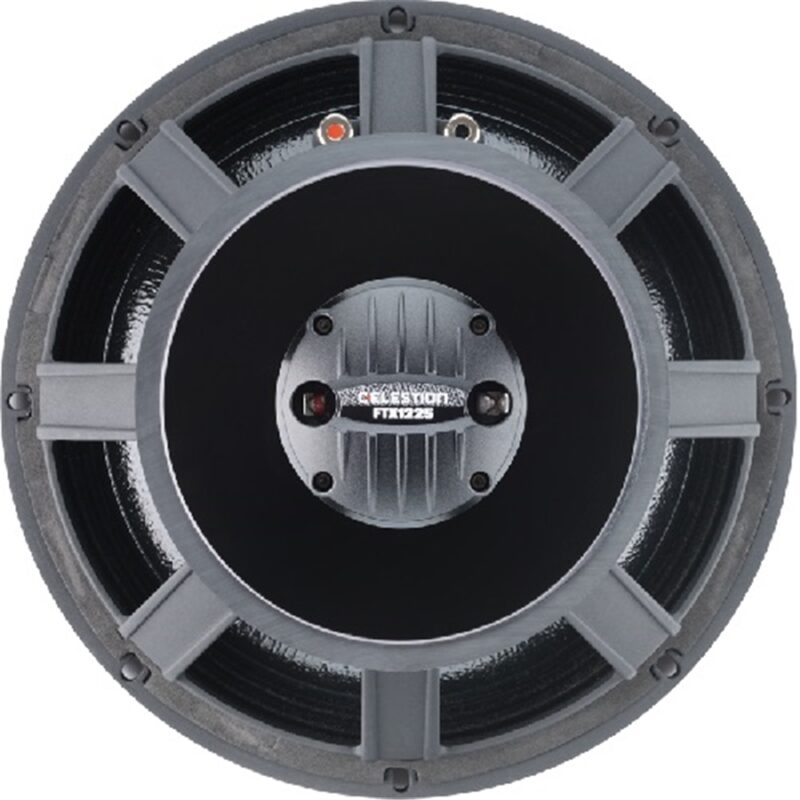

Celestion – FTX1225 300W 8ohm – Coaxial
Altoparlante coassiale da 12′ con chassis in fusione d’alluminio, magnete in ferrite, bobina da 2.5′, potenza 300Watt, impedenza 8ohm
Voglia di audio Fai da Te? Per il progetto di un floor-monitor 2 vie 12′, clicca qui
Design curato, collaudato e messo a disposizione direttamente da Celestion.
Caratteristiche
– 12′ coaxial loudspeaker with 300Wrms (AES standard) power handling and 97dB sensitivity

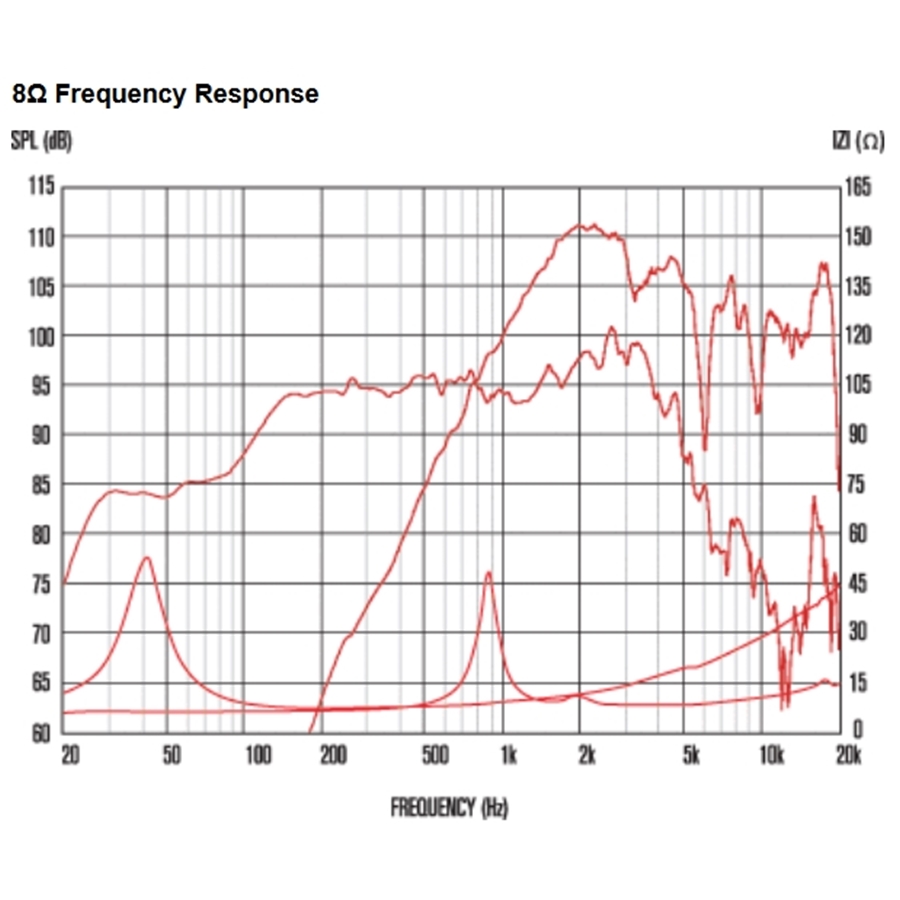

– Full range frequency response: 50 – 20,000Hz
– FEA (Finite Element Analysis) optimized ferrite magnet assembly acts as common motor for both LF and HF drivers resulting in enhanced coherence
– Robust cast aluminium chassis is designed to minimize unwanted reflections, further reducing acoustic distortion
– Demodulation ring reduces flux modulation, minimizing electromagnetic distortion
– 2.5′ edgewound copper clad aluminium voice coil wound on high temperature glass fibre former
Specifiche Generali
Size: 305mm/12in
Power rating(1): 300Wrms
Nominal impedance: 8ohm
Sensitivity(2): 97dB
Frequency range: 50-4000Hz
Voice coil diameter: 64mm/2.5in
Chassis type: Cast Aluminium
Magnet type: Ferrite
Magnet weight: 2.3kg/81oz
Coil material: Edgewound copper clad aluminium
Former material: Glass fibre
Cone material: Kevlar loaded paper
Surround material: Cloth-sealed
Suspension: Single
Xmax(3): 4mm/0.16in
Gap depth: 8mm/0.31in
Voice coil winding width: 16mm/0.62in
Parametri di Thiele-Small
D: 0.26m/10.24in
Fs: 47.8Hz
Mms: 49.44g/1.95oz
Qms: 5.714
Qes: 0.409
Mmd: 42.52g/1.5oz
Qts: 0.382
Re: 5.35ohm
Vas: 89.55lt/3.16ft3
BI: 13.94Tm
Cms: 0.224mm/N
Rms: 2.59kg/s
Le (at 1kHz): 0.78mH
Specifiche Generali HF
Power rating(1): 60 Wrms
Nominal impedance: 8ohm
Sensitivity(2): 104dB
Frequency range: 1000-20,000Hz
Recommended min. crossover (12dB/oct): 2000Hz
Voice coil diameter: 45mm/1.75in
Diaphragm and surround material: Polyimide
Informazioni di Montaggio
Overall depth: 168mm/6.61in
Cut-out diameter: 286mm/11.26in
Mounting slot dimensions: 7.5×6.5mm/0.29×0.26in
Number of mounting slots: 8
Mounting PCD range: 298-304mm/11.70-11.97in
Unit weight: 5.9kg/13.0lb
Note
(1)Tested for two hours using a continuous, band-limited pink noisesignal as per AES standard. Power calculated on minimum impedance. Loudspeaker tested in free air.
(2)Measured on axis at 1W, 1m in 2pi anechoic environment.
(3)Xmax derived from: (voice coil winding width-gap depth)/2.
Fornito senza Crossover
Per una panoramica su tutta la serie Celestion Coaxial, clicca qui
Gli speaker della serie Celestion FTX sono driver per altoparlanti coassiali full-range. Hanno un singolo gruppo magnetico che guida sia gli elementi a bassa che quelli ad alta frequenza per un segnale di uscita più coerente. I vantaggi includono anche un peso inferiore e dimensioni più compatte.
