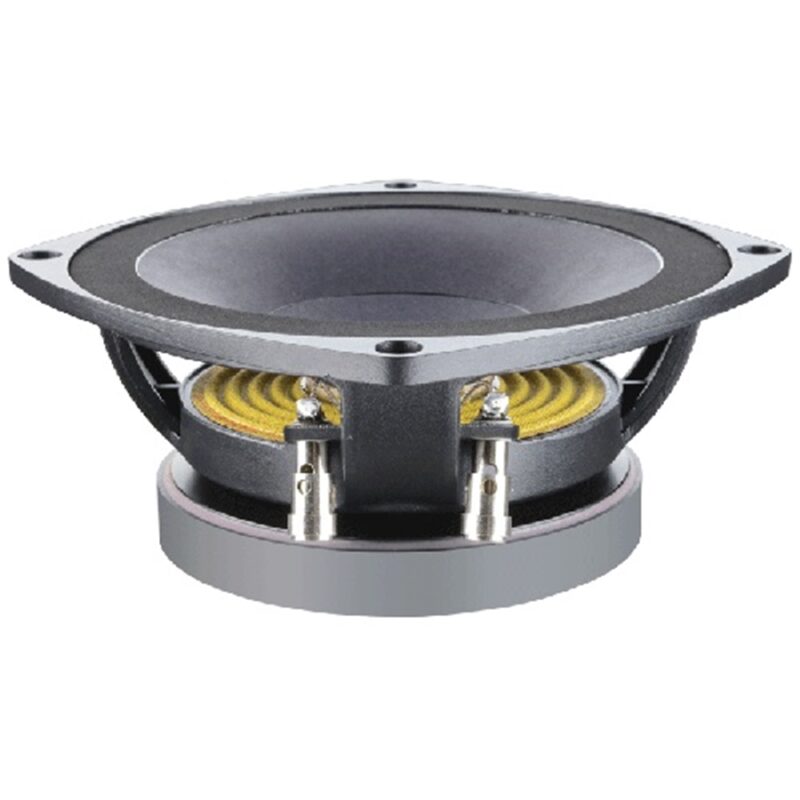

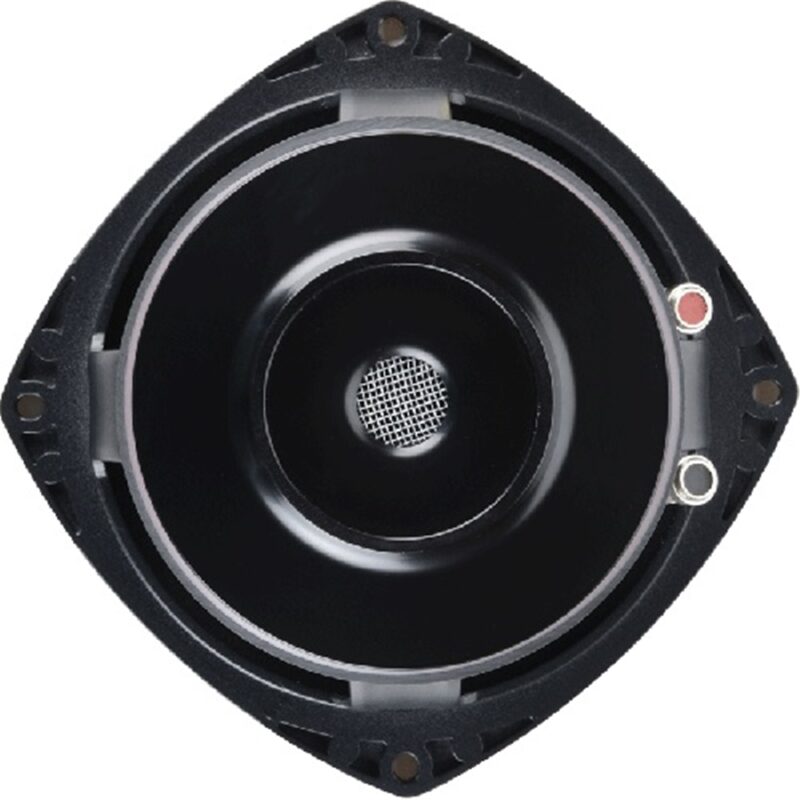

Celestion – CF0617M 200W 8ohm – LF Die Cast Chassis Loudspeaker – Ferrite
Altoparlante da 6" con chassis in fusione d'alluminio, magnete in ferrite, bobina da 1.75", potenza 200Watt, impedenza 8ohm
Caratteristiche
– 6.5" dedicated mid-range driver delivering 96dB sensitivity and 200Wrms;(AES standard) power handling
– FEA optimised magnet assembly and suspension delivers highly symmetrical cone movement leading to exceptionally low harmonic distortion
– Copper sleeved pole reduces inductive rise for improved HF performance
– Intelligent heat management in both chassis and magnet assembly design offers reduced thermal compression
– Space efficient chassis profile
Specifiche Generali
Nominal diameter: 165mm/6.5in
Power rating(1): 200Wrms
Nominal impedance: 8ohm
Sensitivity(2): 96dB

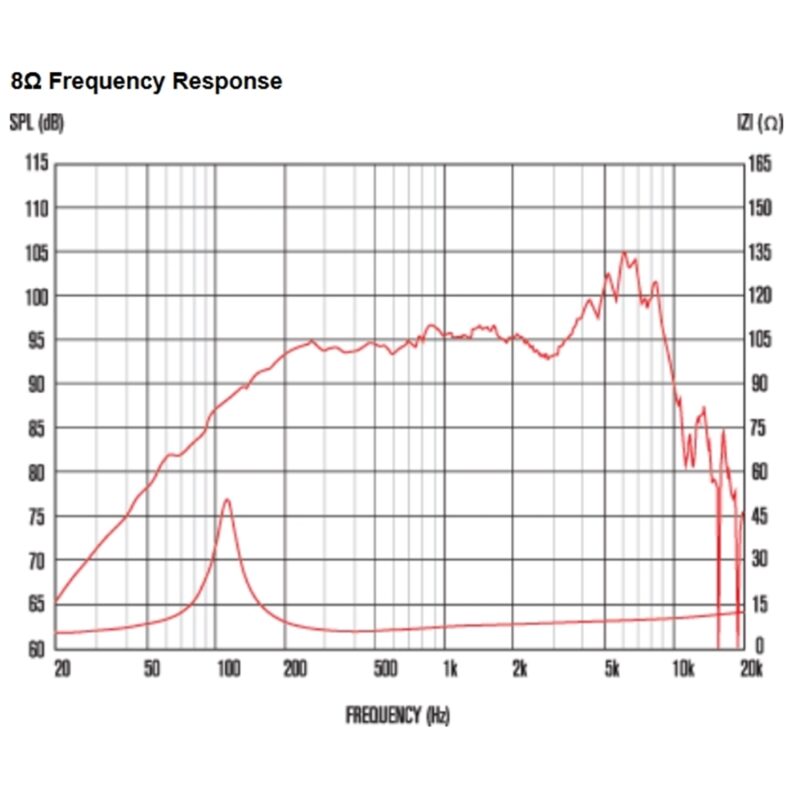

Frequency range: 300-7000Hz
Voice coil diameter: 45mm/1.75in
Chassis type: Cast Aluminium
Magnet type: Ferrite
Magnet weight: 0.6kg/220oz
Coil material: Edgewound copper clad aluminium
Cone material: Kevlar loaded paper
Surround material: Temperature resistant foam
Suspension: Single
Gap depth: 6mm/0.24in
Voice coil winding width: 8.4mm/0.33in
Xmax(3): 1.2mm/0.05in
Parametri di Thiele-Small
D: 0.14m/5.5in
Fs: 135.8Hz
Mms: 11.65g/0.411oz
Qms: 7.49
Qes: 0.6
Mmd: 10.57g/0.373oz
Qts: 0.555
Re: 4.98ohm
Vas: 3.95lt/0.14ft3
BI: 9.08Tm
Cms: 0.118mm/N
Rms: 1.327kg/s
Informazioni di Montaggio
Overall depth: 78.5mm/3.1in
Cut-out diameter: 150mm/5.9in
Mounting slot dimensions: 7.5mm x 5.5mm/0.3in x 0.22in
Number of mounting slots: 4
Mounting PCD range: 173-175mm/6.81-6.89in
Unit weight: 1.9kg/4.2lb
Note
(1)Tested for two hours using a continuous, band-limited pink noise signal as per AES standard. Power calculated on minimum impedance. Loudspeaker tested in free air.
(2)Measured on axis at 1W, 1m in 2pi anechoic environment.
(3)Xmax derived from: (voice coil winding width-gap depth)/2.
