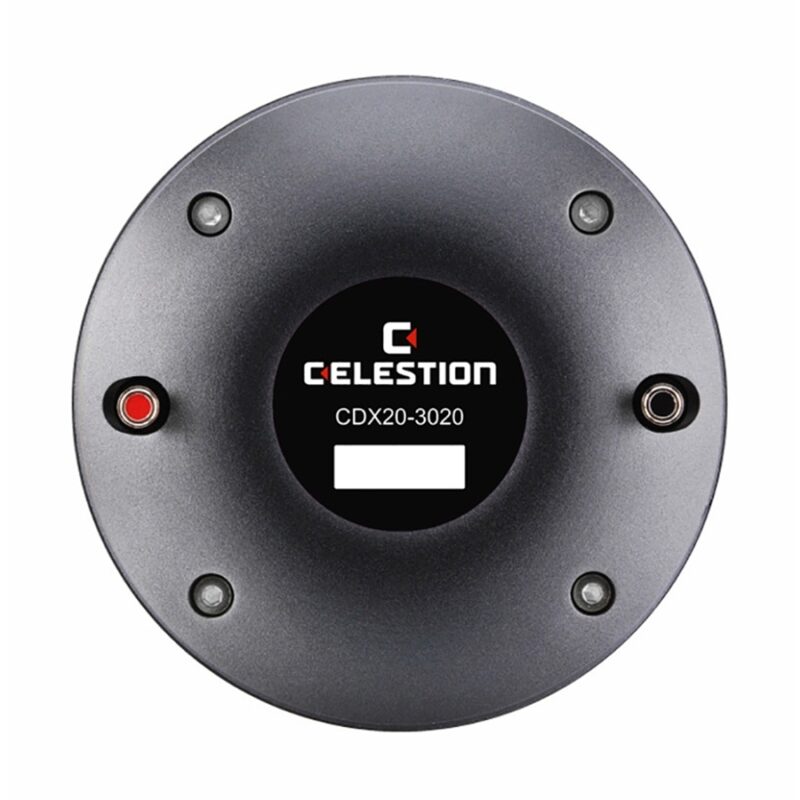

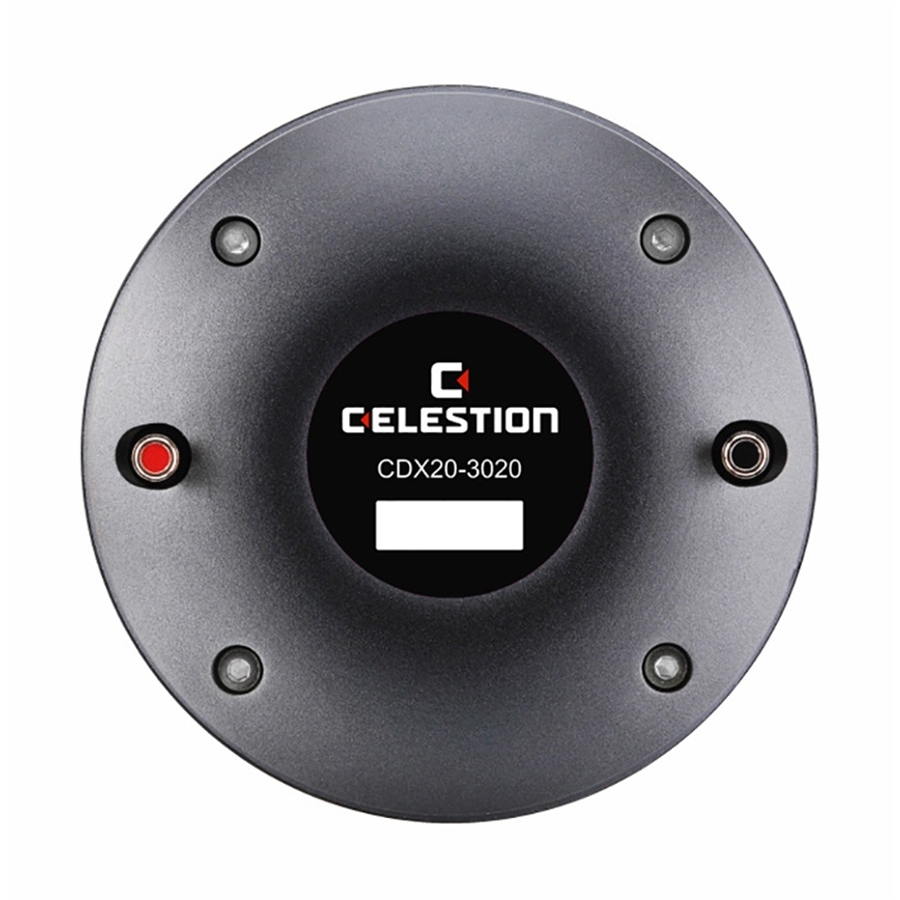

Celestion – CDX20-3020 100W 8ohm – HF Compression Driver – Ferrite
Driver a compressione con magnete in ferrite, uscita da 2′, potenza 100Watt, impedenza 8ohm, diaframma in titanio, fissaggio con viti (bolt).
Caratteristiche
– 2′ exit ferrite magnet compression driver with 3′ copper clad aluminium voice coil
– 100Wrms (AES standard) power handling and 107dB sensitivity
– Next generation Sound Castle™ soft clamping assembly reduces diaphragm stress for decreased distortion and even greater reliability of performance
– Single piece titanium diaphragm and surround
– Finite element analysis (FEA) used to optimise magnetic, acoustic and electromechanical design
Specifiche Generali
Power rating(1): 100Wrms
Continuous power rating(2): 200W
Nominal impedance: 8ohm

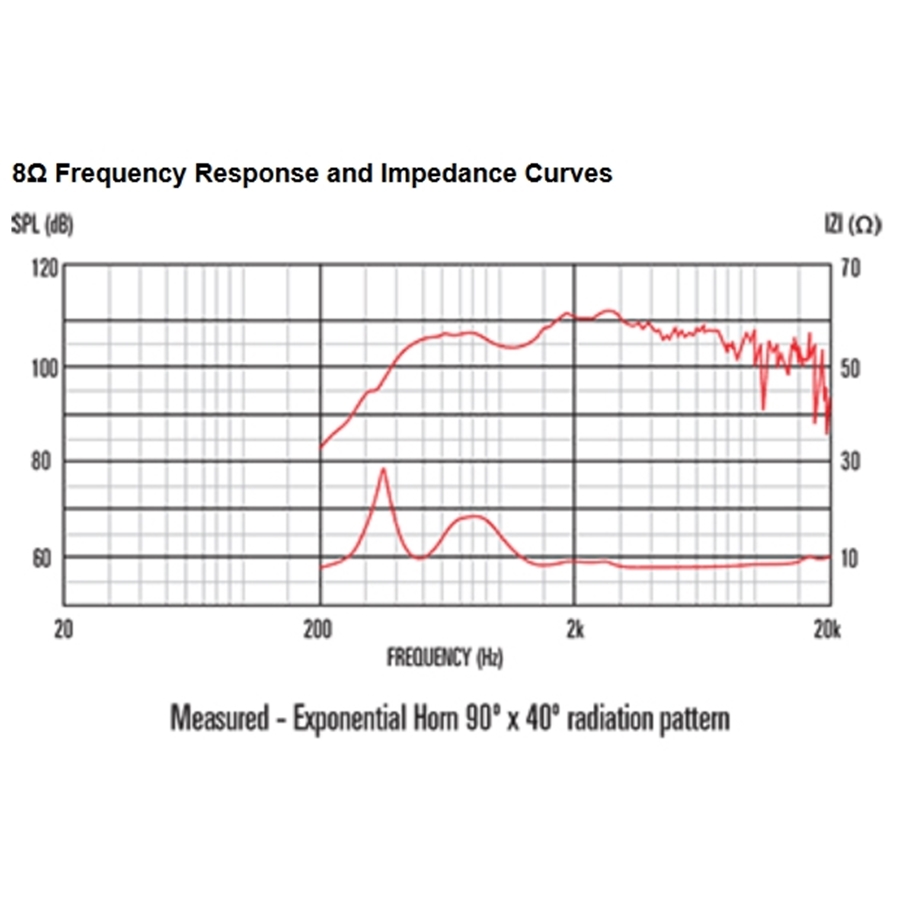

Frequency range: 500-18,000Hz
Sensitivity(3): 107dB
Recommended min. crossover (12dB/oct): 800Hz
Voice coil diameter: 75mm/3in
Voice coil material: Edgewound copper clad aluminium
Magnet type: Ferrite
Diaphragm material: Titanium
Surround material: Titanium
Informazioni di Montaggio
Width: 180mm/7in
Depth: 68mm/2.7in
Weight: 4.9kg/10.8lb
Fitting: Flange (4 x M6 holes on 102mm/4.02inch PCD)
Throat exit: 50mm/2in
Note
(1)Tested for two hours on plane wave tube using a continuous, band-limited pink noise signal as per AES standard. Power calculated on minimum impedance.
(2)Continuous Power Handling is defined as 3dB greater than the AES rating.
(3)Measured on axis at 1W, 1m, using typical horn, in 2 anechoic
