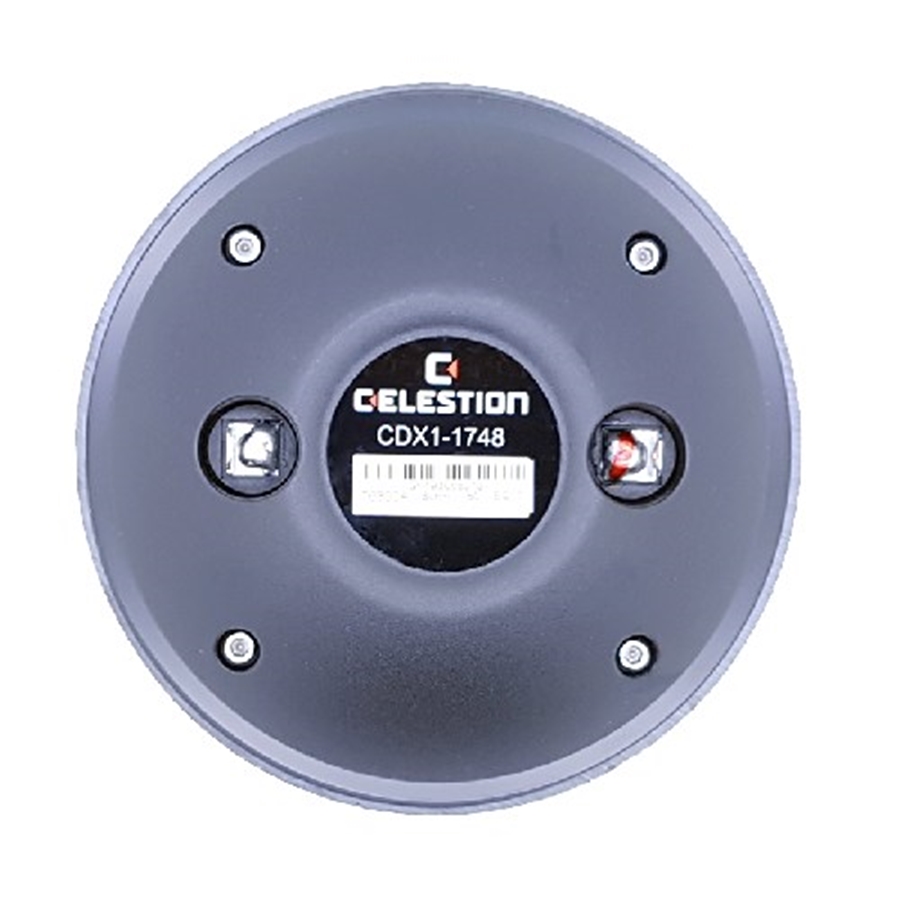

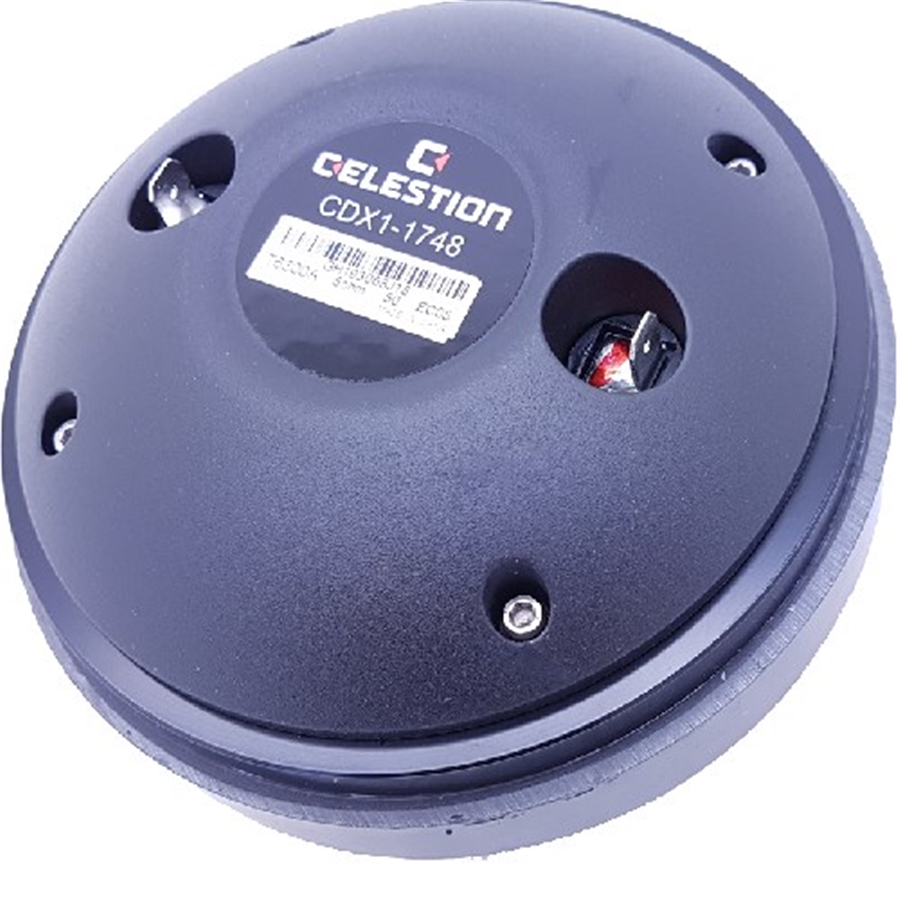

Celestion – CDX1-1748 60W 8ohm – HF Compression Driver – Ferrite
Driver a compressione con magnete in ferrite, uscita da 1′, potenza 60Watt, impedenza 8ohm, diaframma in polymide (poliimmide), fissaggio ad avvitare (screw).
Caratteristiche
– 1′ exit, ferrite magnet compression driver with 1.75′ edgewound copper clad aluminium voice coil
– 60Wrms power handling (AES standard) and 110dB sensitivity
– Next generation Sound Castle™ soft clamping assembly reduces diaphragm stress for reduced distortion and even greater reliability of performance
– One piece Polyimide diaphragm and surround
– Finite Element Analysis (FEA) used to optimise both magnet assembly and acoustic design
– Screw fitting, same performance and reliability as the CDX1-1747 with an industry-standard 35mm screw fitting
Specifiche Generali
Power rating(1): 60Wrms
Continuous power rating(2): 120W
Nominal impedance: 8ohm

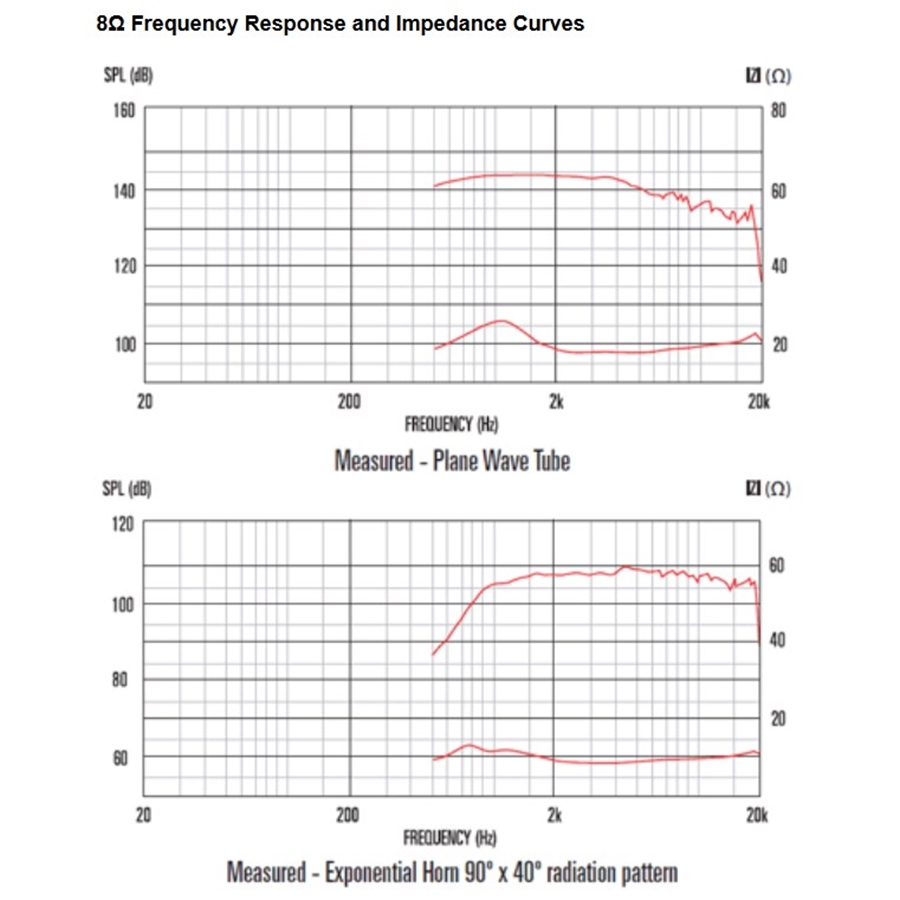

Frequency range: 1000-20,000Hz
Sensitivity(3): 110dB
Recommended min. crossover (12dB/oct): 2000Hz
Voice coil diameter: 44mm/1.75in
Voice coil material: Edgewound Copper Clad Aluminium
Magnet type: Ferrite
Diaphragm material: Polyimide
Surround material: Polyimide
Informazioni di Montaggio
Width: 120mm/4.72in
Depth: 56mm/2.2in
Weight: 2.3kg/5.1lb
Fitting: Screw (35mm, 1.38in dia)
Throat exit: 25mm/1in
Trombe Compatibili
H1SC-9040, H1SC-8050
Note
(1)Tested for two hours on plane wave tube using a continuous, band-limited pink noise signal as per AES standard. Power calculated on minimum impedance.
(2)Continuous Power Handling is defined as 3dB greater than the AES rating.
(3)Measured on axis at 1W, 1m, using typical horn, in 2pi anechoic environment.
