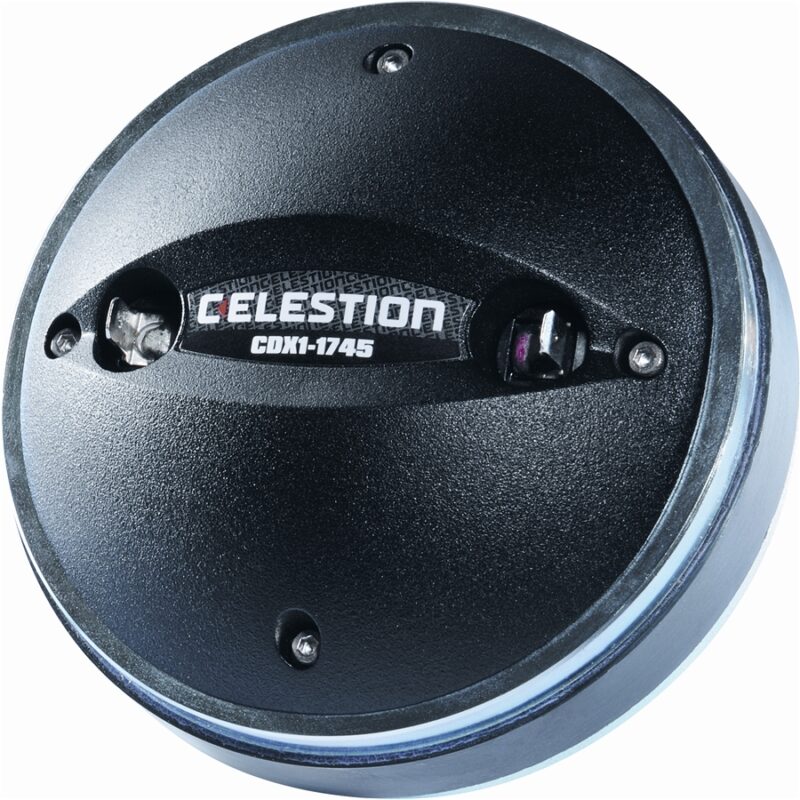

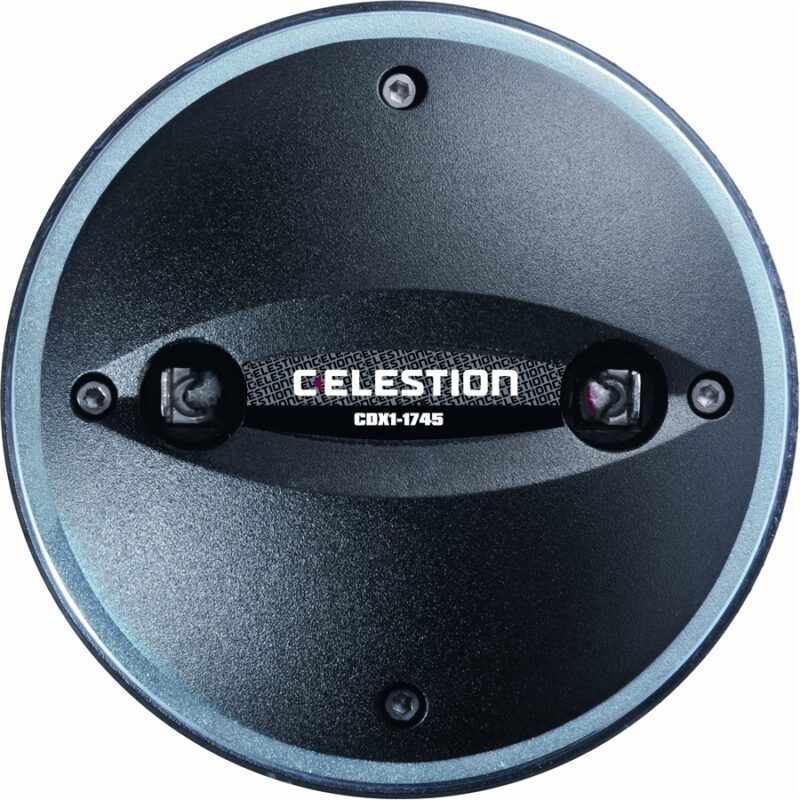

Celestion – CDX1-1745 40W 8ohm – HF Compression Driver – Ferrite
Driver a compressione con magnete in ferrite, uscita da 1′, potenza 40Watt, impedenza 8ohm, diaframma in PETP (polietilene tereftalato), fissaggio con viti (bolt).
Voglia di audio Fai da Te? Per il progetto di un diffusore PA 12′ compatto 2-vie, clicca qui
Design curato, collaudato e messo a disposizione direttamente da Celestion.
Caratteristiche
– 1′ exit, ferrite magnet compression driver with 1.75′ edgewound copper clad aluminium voice coil
– 40Wrms power handling (AES standard) and 110dB sensitivity
– Sound Castle™ clamping ensures even pressure on diaphragm assembly for reduced distortion
– One piece PETP diaphragm and surround
– Finite Element Analysis (FEA) used to optimise both magnet assembly and acoustic design
Specifiche Generali
Power rating(1): 40Wrms
Continuous power rating(2): 80W
Nominal impedance: 8/16ohm
Frequency range: 1200-20000Hz
Sensitivity(3): 110dB
Recommended min. crossover (12dB/oct): 2200Hz
Voice coil diameter: 44mm/1.75in
Voice coil material: Edgewound copper clad aluminium
Magnet type: Ferrite
Diaphragm material: PETP film
Surround material: PETP film
Informazioni di Montaggio
Width: 120mm/4.7in
Depth: 56mm/2.2in
Weight: 2.3kg/5.1lb

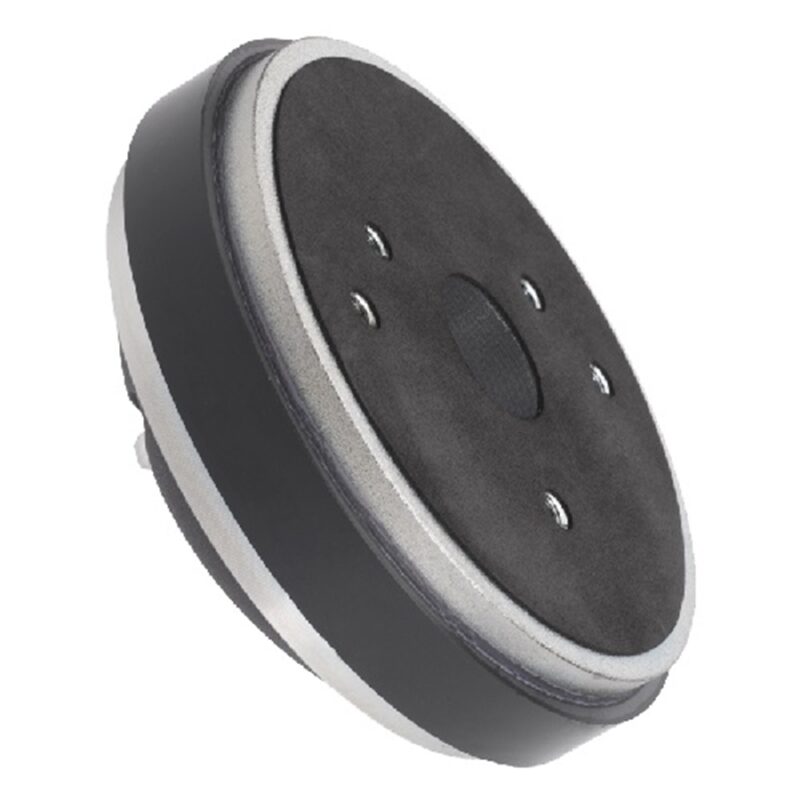

Fitting: Flange (2/3 M6 holes on 76/57mm, 3.0/2.24in PCD)
Throat exit: 25.4mm/1in
Trombe Compatibili
H1-9040P, H1-7050 ‘No Bell’
Note

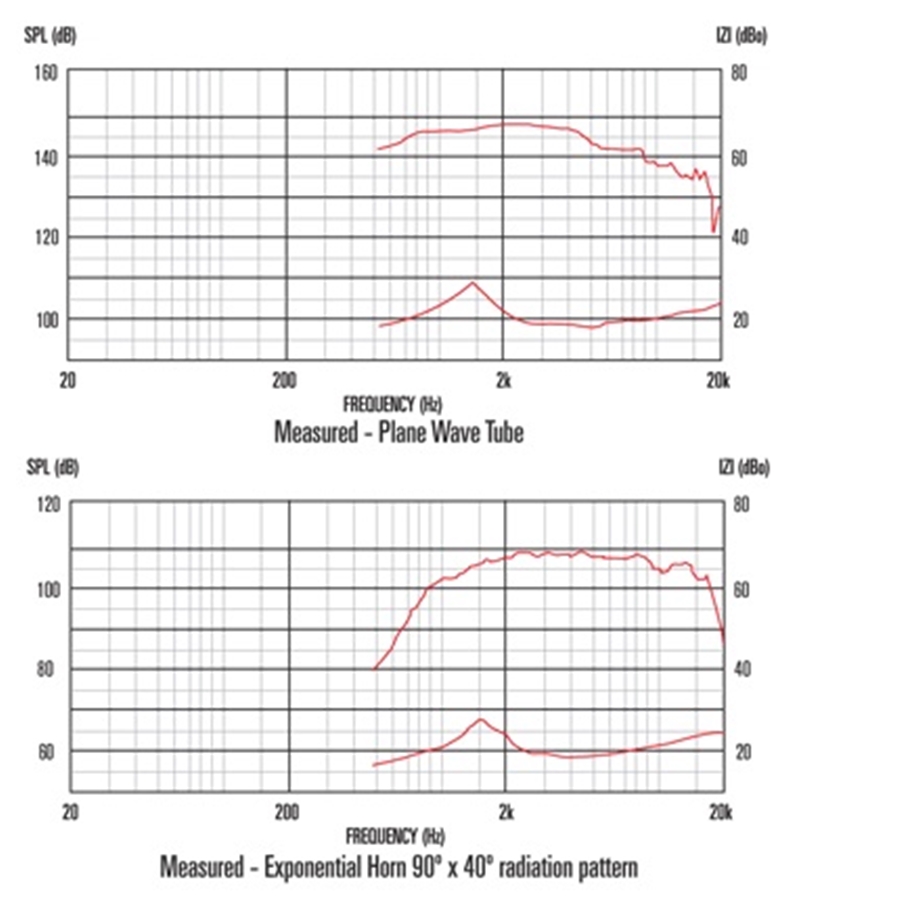

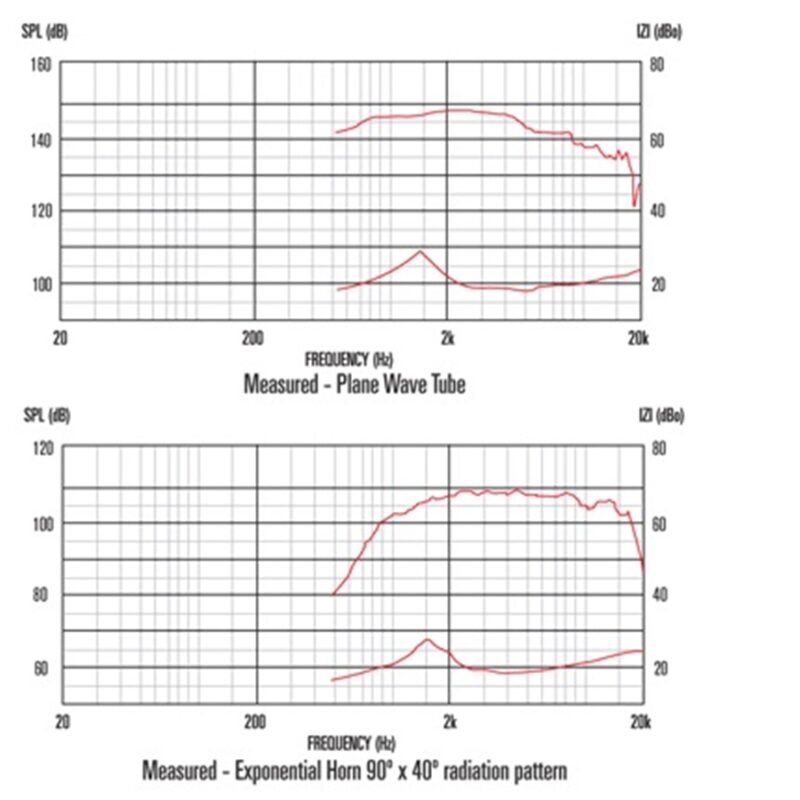

(1)Tested for two hours on plane wave tube using a continuous, band-limited pink noise signal as per AES standard. Power calculated on minimum impedance.
(2)Continuous Power Handling is defined as 3dB greater than the AES rating.
(3)Measured on axis at 1W, 1m, using typical horn, in 2 anechoic environment.
