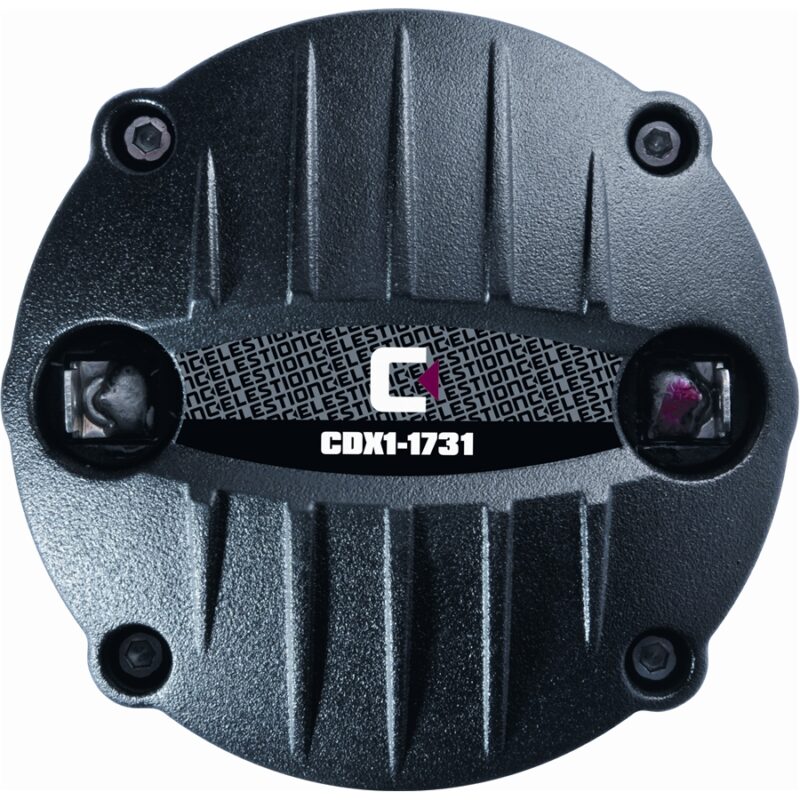

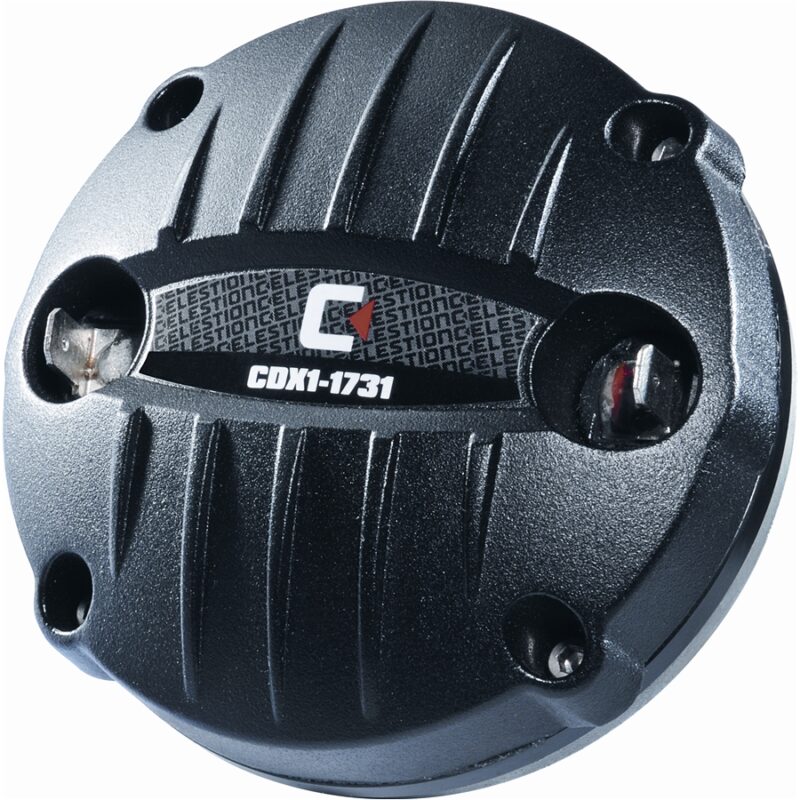

Celestion – CDX1-1731 40W 8ohm – HF Compression Driver – Neodimio
Driver a compressione con magnete in neodimio, uscita da 1", potenza 40Watt, impedenza 8ohm, diaframma in PETP (polietilene tereftalato), fissaggio ad avvitare (screw).
Caratteristiche
– 1" exit, neodymium magnet compression driver with 1.75" edgewound copper clad aluminium voice coil
– 40Wrms (AES standard) power handling and 110dB sensitivity
– Designed with Sound Castle™ clamping to ensure uniform pressure on diaphragm assembly for reduced acoustic distortion
– One piece PETP film diaphragm and surround
– Advanced Finite Element Analysis (FEA) tools used to create a very light weight, high powered compression driver
Specifiche Generali
Power rating(1): 40Wrms
Continuous power rating(2): 80W
Nominal impedance: 8ohm
Sensitivity(3): 110dB

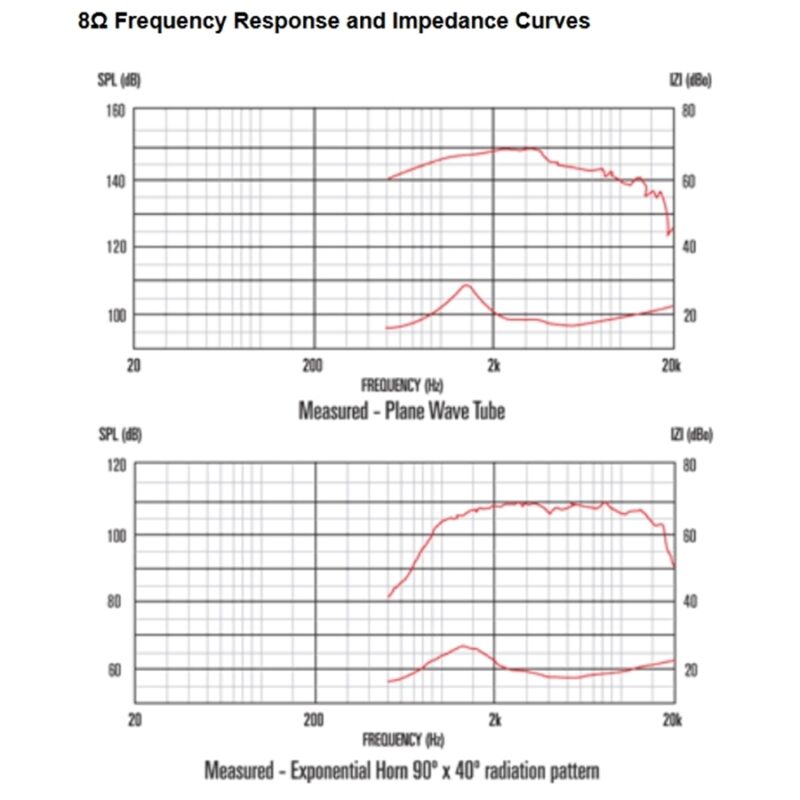

Frequency range: 1200-20,000Hz
Recommended min. crossover (12dB/oct): 2200Hz
Voice coil diameter: 44mm/1.75in
Voice coil material: Edgewound copper clad aluminium
Magnet type: Neodymium
Diaphragm material: PETP film
Surround material: PETP film
Informazioni di Montaggio
Maximum width: 88.5mm/3.48in
Minimum width: 82.0mm/3.23in
Depth: 57mm/2.3in
Weight: 0.65kg/1.4lb
Fitting: Screw (35mm, 1.38in dia)
Throat exit: 25.4mm/1in
Trombe Compatibili
H1SC-9040, H1SC-7050
Note
(1)Tested for two hours on plane wave tube using a continuous, band-limited pink noise signal as per AES standard. Power calculated on minimum impedance.
(2)Continuous Power Handling is defined as 3dB greater than the AES rating.
(3)Measured on axis at 1W, 1m, using typical horn, in 2 anechoic environment.
