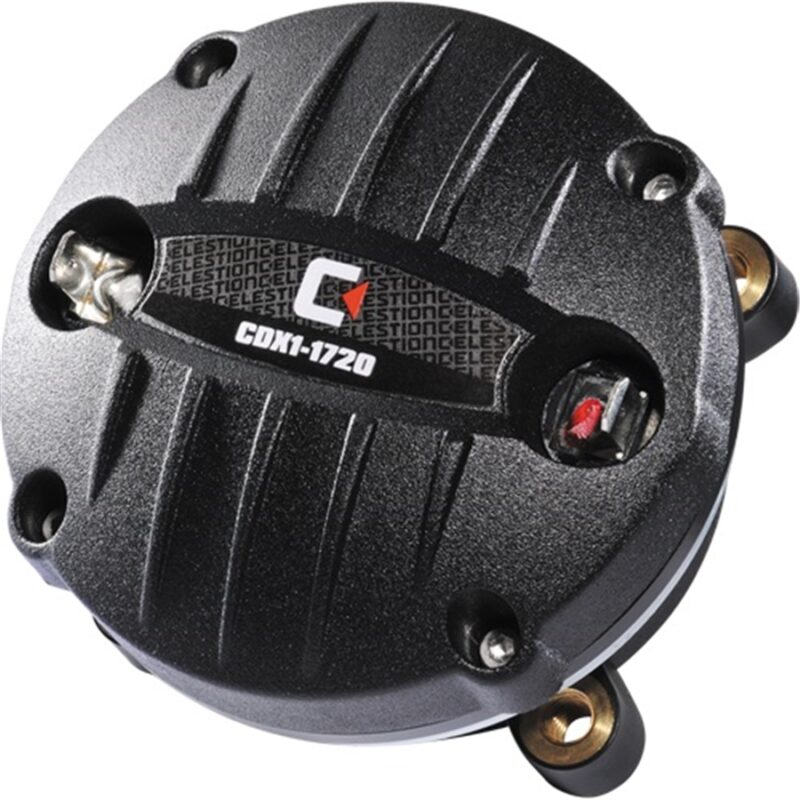

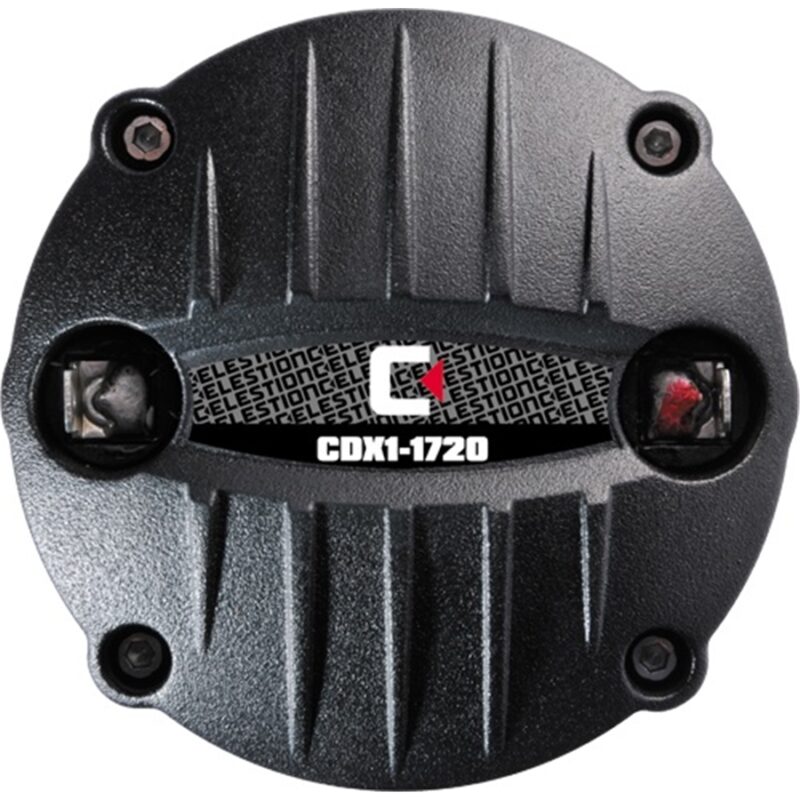

Celestion – CDX1-1720 50W 8ohm – HF Compression Driver – Neodimio
Driver a compressione con magnete in neodimio, uscita da 1", potenza 50Watt, impedenza 8ohm, diaframma in titanio, fissaggio con viti (bolt).
Caratteristiche
– 1" exit, lightweight and compact compression driver featuring neodymium magnet and 1.75" diameter titanium diaphragm
– 50Wrms (AES standard) power handling and 107dB sensitivity
– Rolled polyimide surround improves stiffness control, further lowering distortion
– Lower resonance enabling lower crossover frequency
– Patented phase plug design method suppresses cavity resonances at frequencies higher than that of conventional designs
– Lower compression ratio reduces air non-linearity and allows for higher maximum SPL
– Curved coherent wavefront, optimised for horn loading
Specifiche Generali
Power rating(1): 50Wrms
Continuous power rating(2): 100W
Nominal impedance: 8ohm
Sensitivity(3): 107dB

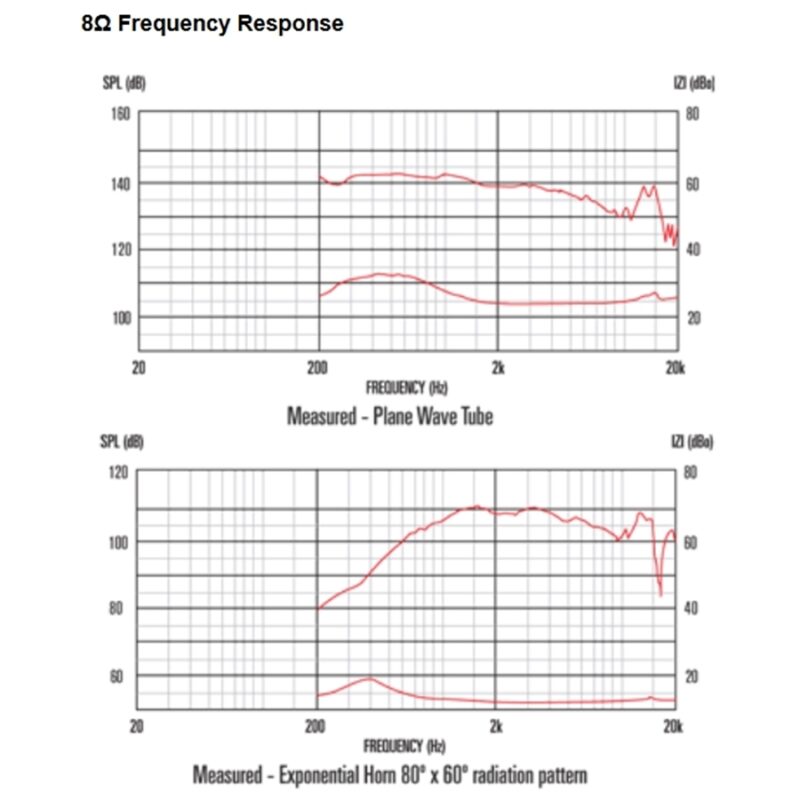

Frequency range: 800-20,000Hz
Recommended min. crossover (12dB/oct): 1500Hz
Voice coil diameter: 44mm/1.75in
Voice coil material: Edgewound copper clad aluminium
Magnet type: Neodymium
Diaphragm material: Titanium
Surround material: Polyimide
Informazioni di Montaggio
Maximum width: 88.5mm/3.48in
Minimum width: 82.0mm/3.23in
Depth: 55mm/2.2in
Weight: 0.65kg/1.4lb
Fitting: Flange (4 x M6 holes on 76mm/3in PCD)
Throat exit: 25.4mm/1in
Trombe Compatibili
H1-9040P , H1-7050 "No Bell"
Note
(1)Tested for two hours on plane wave tube using continuous band-limited pink noise as per AES standard. Power calculated on minimum impedance.
(2)Continuous Power Handling is defined as 3dB greater than the AES rating.
(3)Measured on axis at 1W/1m, using typical horn, in 2 anechoic environment.
