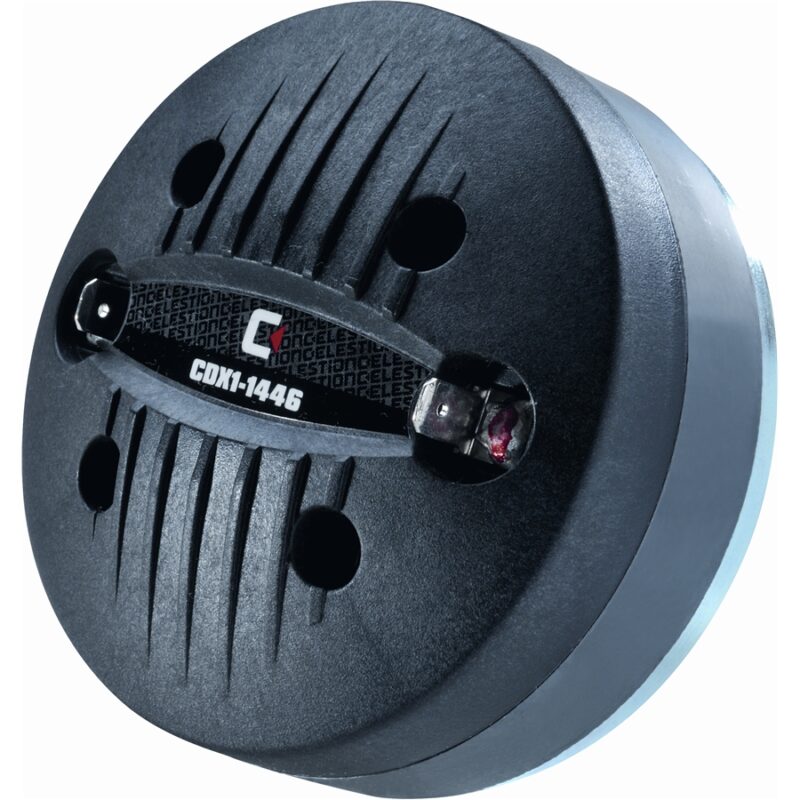

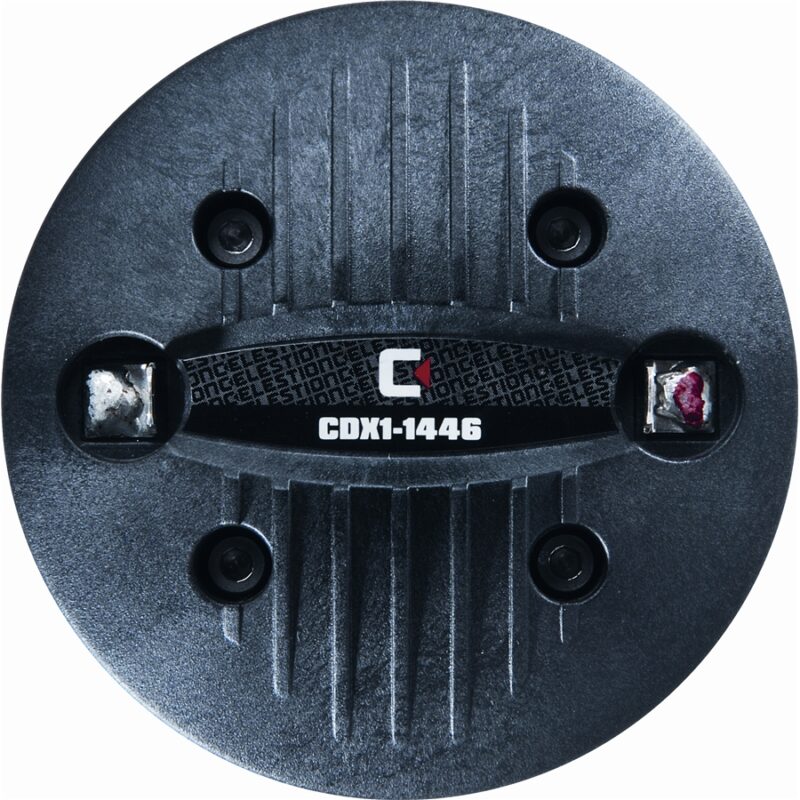

Celestion – CDX1-1446 20W 8ohm – HF Compression Driver – Ferrite
Driver a compressione con magnete in ferrite, uscita da 1", potenza 20Watt, impedenza 8ohm, diaframma in PETP (polietilene tereftalato), fissaggio ad avvitare (screw).
Caratteristiche
– 1" exit lightweight and compact ferrite magnet compression driver with 1.4" copper clad aluminium voice coil
– 20Wrms power handling (AES standard) and 106dB sensitivity

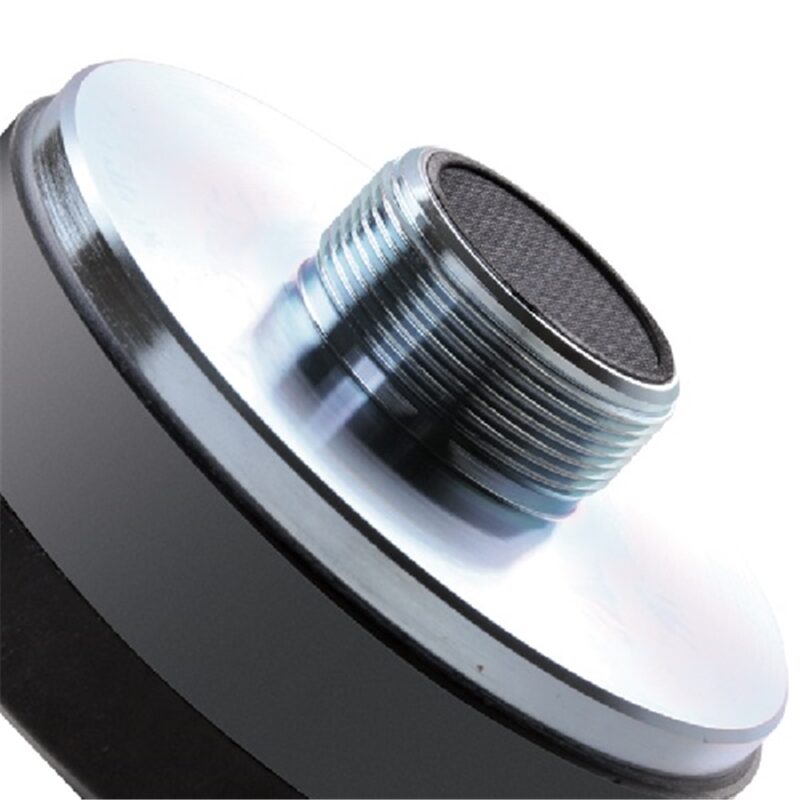

– 35mm/1.38in screw attachment
– One piece PETP diaphragm and surround
– Finite Element Analysis (FEA) techniques used to optimise both magnetic and acoustic design
– Suitable for 2-way and 3-way systems
Specifiche Generali
Power rating(1): 20Wrms
Continuous power rating(2): 40W
Nominal impedance: 8ohm
Frequency range: 1500-20000
Sensitivity(3): 106dB
Recommended min. crossover (12dB/oct): 2200Hz
Voice coil diameter: 35mm/1.4in
Voice coil material: Round Copper Coated Aluminium
Magnet type: Ferrite
Diaphragm material: PETP film
Surround material: PETP film
Informazioni di Montaggio
Width: 90.0mm/3.54in
Depth: 69mm/2.71in
Weight: 1.1kg
Fitting: Screw (35mm, 1.38in diameter)
Throat exit: 25.4mm/1.0in
Trombe Compatibili
H1SC-9040, H1SC-7050
Note

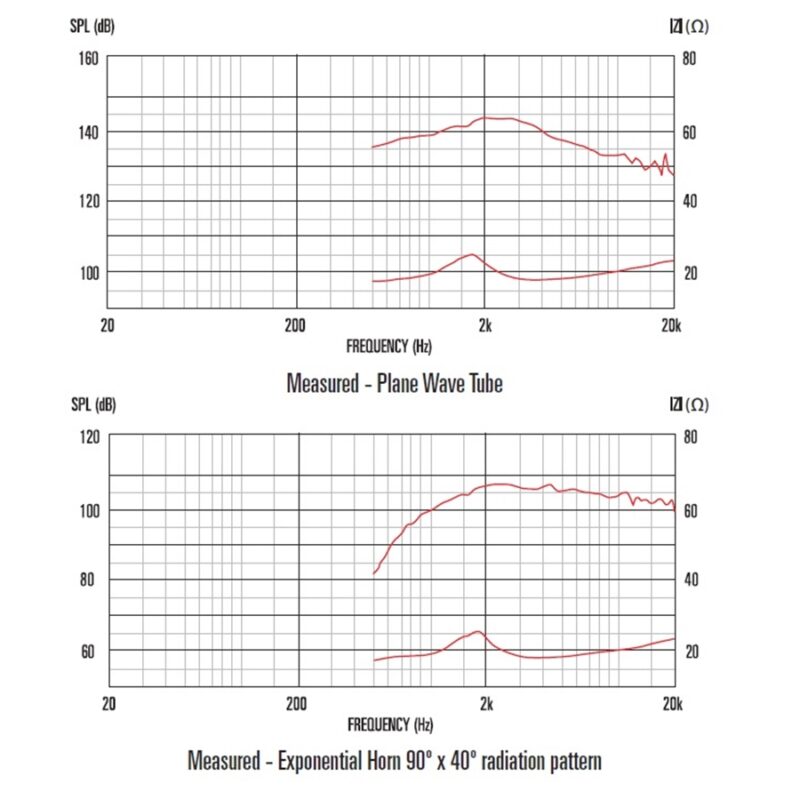

(1)Tested for two hours on plane wave tube using continuous band-limited pink noise as per AES standard. Power calculated on minimum impedance.
(2)Continuous Power Handling is defined as 3dB greater than the AES rating.
(3)Measured on axis at 1W/1m, using typical horn, in 2 anechoic environment.
