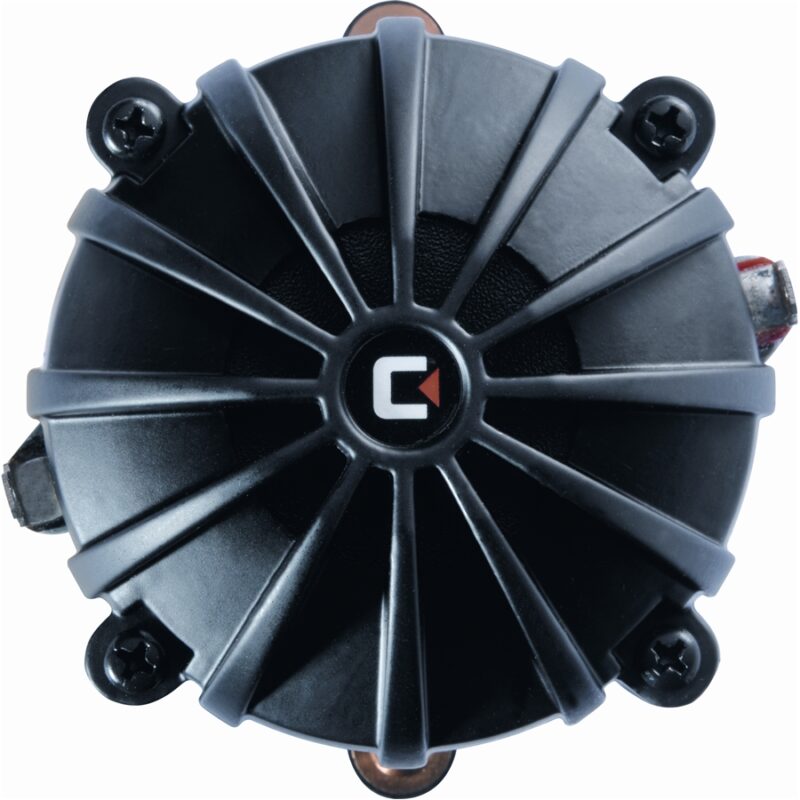

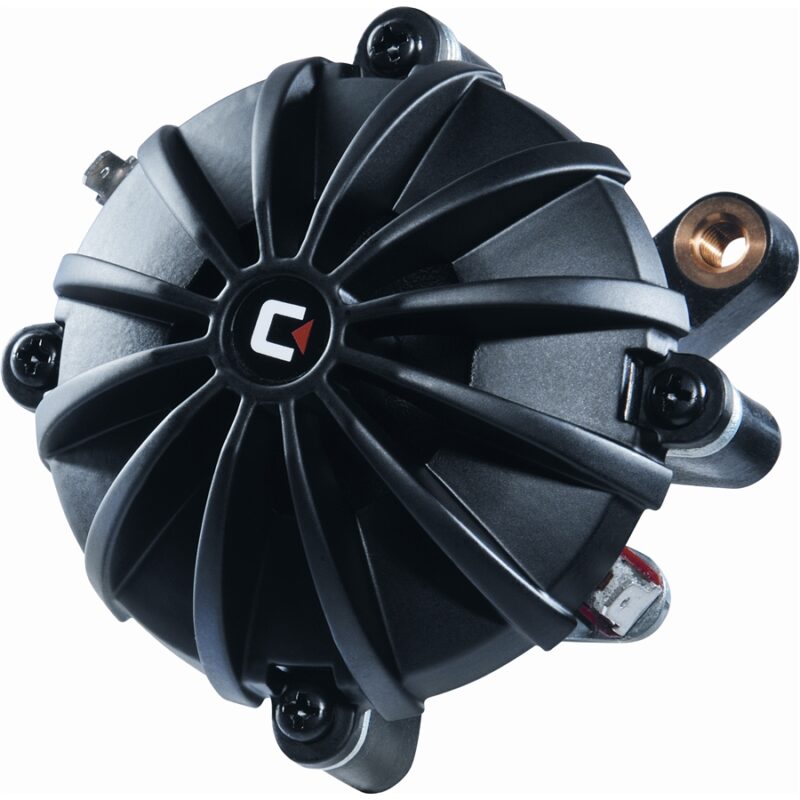

Celestion – CDX1-1430 50W 8ohm – HF Compression Driver – Neodimio
Driver a compressione con magnete in neodimio, uscita da 1", potenza 50Watt, impedenza 8ohm, diaframma in alluminio, fissaggio con viti (bolt).
Caratteristiche
– 1" exit neodymium compression driver with 1.4" copper clad aluminium voice coil
– 50Wrms power handling (AES standard) and 108dB sensitivity
– Copper sleeve on pole reduces inductive rise for improved HF performance
– Ferrofluid in magnet gap prevents sensitivity loss through thermal compression
– Aluminium diaphragm combined with elastomer surround delivers lower distortion performance
– Finite Element Analysis (FEA) used to optimise both magnet and acoustic design
– Screw mounting adaptor available
Specifiche Generali
Power rating(1): 50Wrms
Continuous power rating(2): 100W
Nominal impedance: 8ohm
Sensitivity(3): 108dB
Frequency range: 2000-20,000Hz
Recommended min. crossover (12dB/oct): 2500Hz
Voice coil diameter: 35mm/1.4in
Voice coil material: Copper clad aluminium
Magnet type: Neodymium
Diaphragm material: Aluminium
Surround material: Elastomer
Informazioni di Montaggio
Maximum width: 90mm/3.5in
Depth: 58mm/2.3in
Weight: 0.47kg/1.0lb
Fitting: Flange (2 x M6 holes on 76mm, 3.0in PCD)
Throat exit: 25.4mm/1in
Trombe Compatibili
H1-9040P, H1-7050 "No Bell"
Note
(1)Tested for two hours on plane wave tube using continuous band-limited pink noise as per AES standard. Power calculated on minimum impedance.
(2)Continuous Power Handling is defined as 3dB greater than the AES rating.
(3)Measured on axis at 1W/1m, using typical horn, in 2 anechoic environment.
