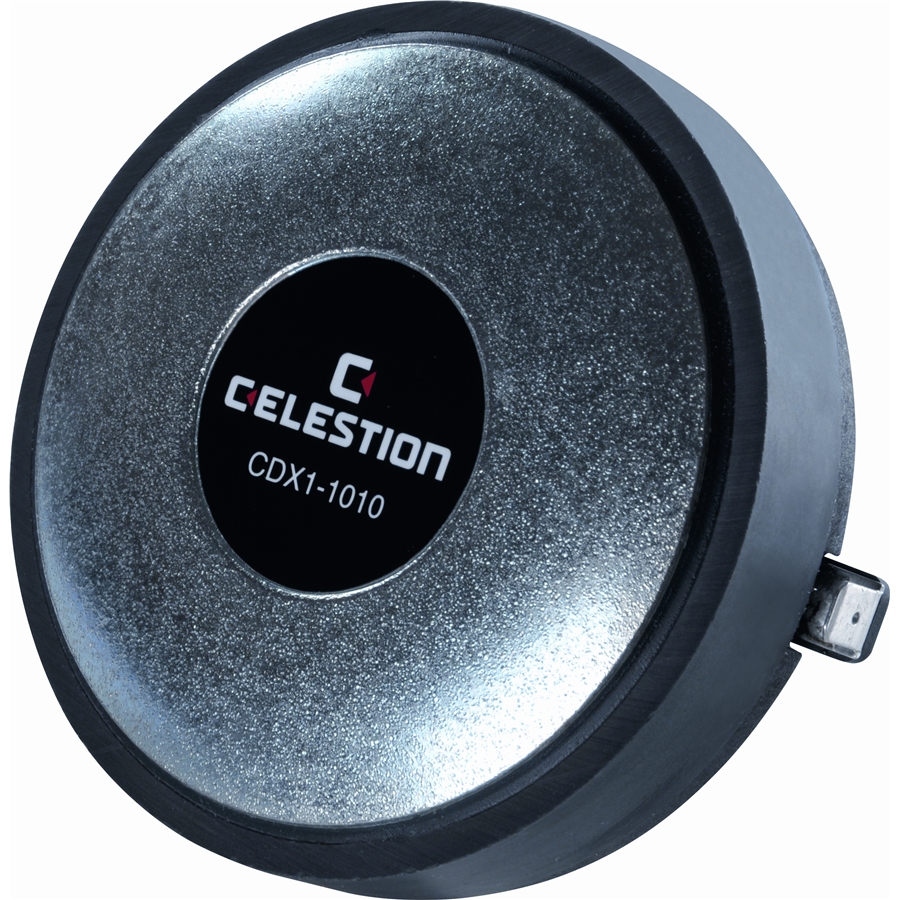

Celestion – CDX1-1010 15W 8ohm – HF Compression Driver – Ferrite
Driver a compressione con magnete in ferrite, uscita da 1′, potenza 15W, impedenza 8ohm, diaframma in PETP (polietilene tereftalato), fissaggio ad avvitare (screw).
Caratteristiche
– Very lightweight, low-profile ferrite magnet compression driver
– 15Wrms (AES standard) power handling and 107dB sensitivity, 1500-20,000Hz frequency range
– Finite Element Analysis (FEA) techniques used to optimise both magnetic and acoustic design
– Ideal for entry-level two-way and three-way sound reinforcement cabinets
– CDX1-1020 variant supplied with partial phase plug assembly (for applications where outer phase plug and horn form single moulding as part of front baffle)
Specifiche Generali
Power rating(1): 15Wrms
Continuous power rating(2): 30W
Nominal impedance: 8ohm

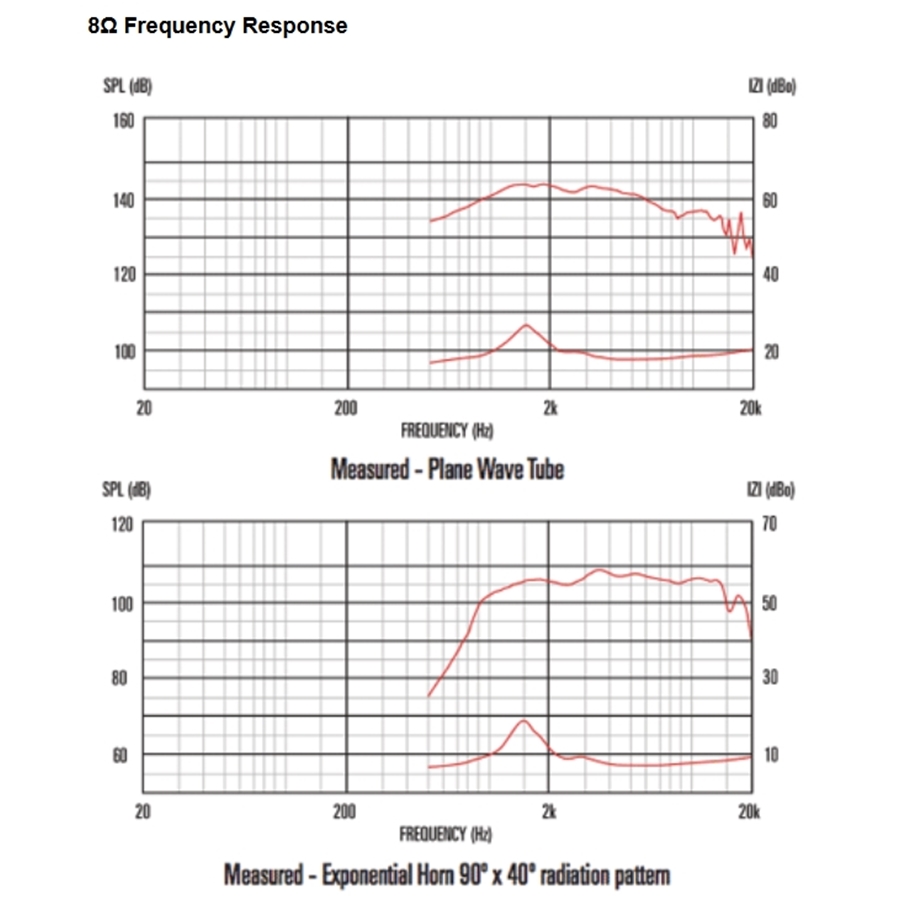

Frequency range: 1500-20,000Hz
Sensitivity(3): 107dB
Recommended min. crossover (12dB/oct): 2200Hz
Voice coil diameter: 25mm/1.0in
Voice coil material: Copper clad aluminium
Magnet type: Ferrite
Diaphragm material: PETP film
Surround material: PETP film
Informazioni di Montaggio
Width: 90mm/3.54in
Depth: 52.8mm/2.08in
Weight: 0.83kg/1.8lb
Fitting: Screw (35mm/1.38in diameter)
Throat exit: 25mm/1.0in
Trombe Compatibili
H1SC-9040, H1SC-7050
Note
(1)Tested for two hours on plane wave tube using continuous band-limited pink noise as per AES standard. Power calculated on minimum impedance.
(2)Continuous Power Handling is defined as 3dB greater than the AES rating.
(3)Measured on axis at 1W/1m, using typical horn, in 2 anechoic environment.
