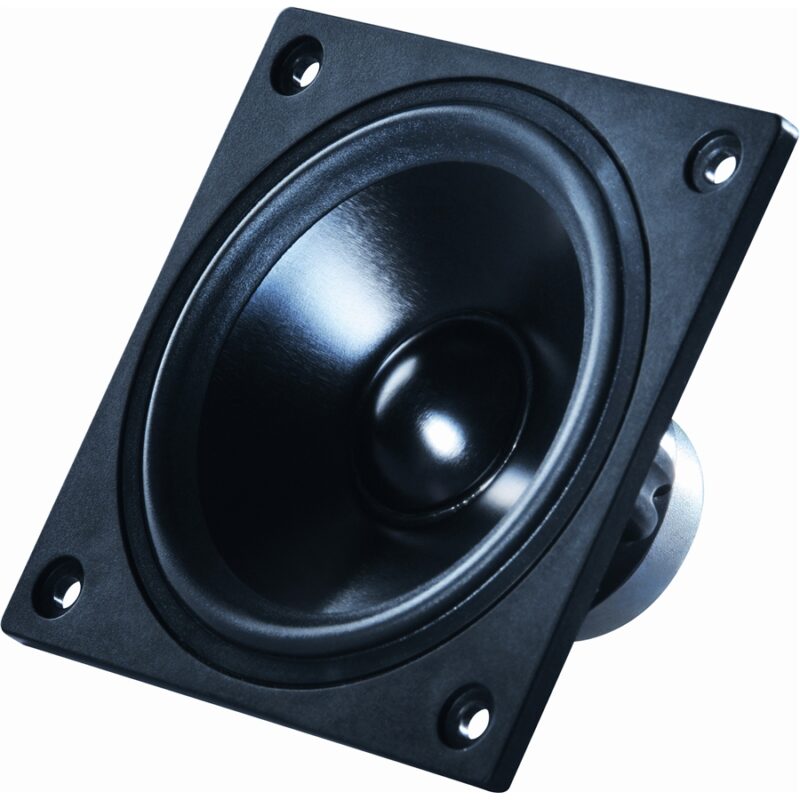

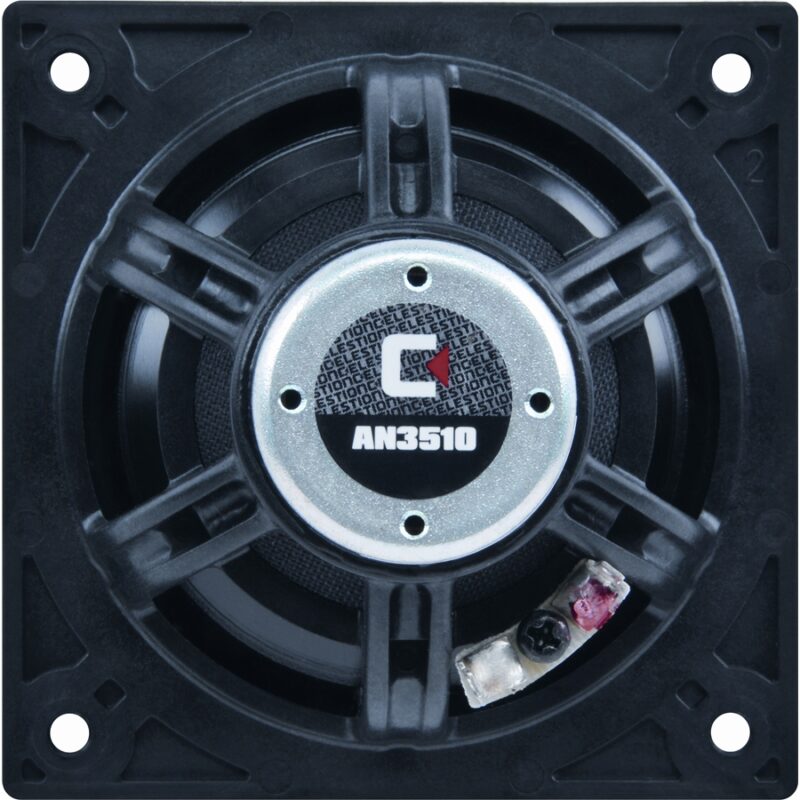

Celestion – AN3510 35W 8ohm – Compact Full Range Loudspeaker – Neodimio
Speaker full-range compatto da 3.5" con magnete in neodimio, bobina da 1", potenza 35Watt, impedenza 8ohm ideale per applicazioni in array e diffusori a colonna.
Caratteristiche
– Compact and lightweight, full-range neodymium loudspeakers
– Advanced Finite Element Analysis techniques used for acoustic, mechanical and electromagnetic modelling
– Ideal for applications such as portable line arrays where actively controlled wavefront (beam steering) is used
– Delivers wider dispersion to higher frequencies than many equivalent compact, full-range drivers on the market
– Chassis purpose-designed for maximum free air movement, with square mounting frame to facilitate close coupling of multiple units
– Stiff and light aluminium cone remains rigid to higher frequencies, delivering a smoother response in the critical listening band
– Half roll elastomer surround provides damping for unwanted resonances and sustained centring control at extremes of excursion
– Designed to be weather resistant for outdoor applications
Specifiche Generali
Nominal diameter: 88mm/3.5in
Power rating(1): 35Wrms
Nominal impedance: 8ohm
Sensitivity(2): 87dB

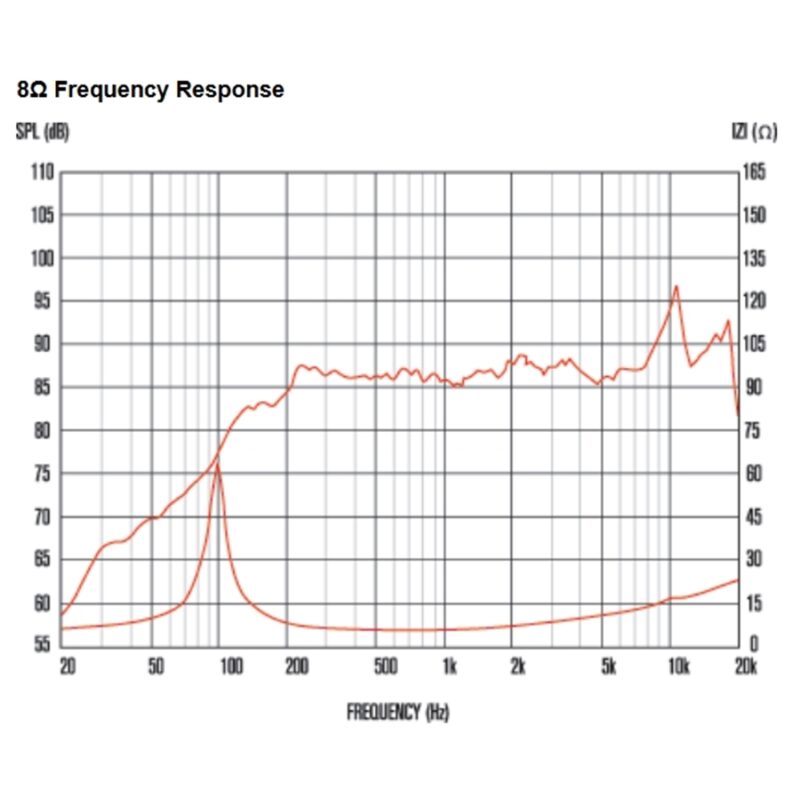

Frequency range: 98Hz-18.5kHz
Voice coil diameter: 25mm/1.0in
Chassis type: Glass reinforced ABS
Magnet type: Neodymium
Voice coil material: Round Copper
Former material: Polyimide
Cone material: Aluminium
Surround material: Elastomer
Xmax(3): 1.25mm/0.04in
Gap depth: 4mm/0.14in
Voice coil winding width: 6.5mm/0.23in
Parametri di Thiele-Small
D: 70mm/2.76in
Sd: 38.48cm2/5.98in2
Fs: 98Hz
Mms: 3.37g/0.12oz
Qms: 6.59
Qes: 0.66
Qts: 0.67
Re: 5.73ohm
Vas: 1.3lt/0.046ft3
BI: 4.5Tm
Cms: 0.62mm/N
Informazioni di Montaggio
Overall depth: 50mm/2in
Overall size: 89.3 x 89.3mm/3.52in x 3.52in
Cut-out diameter: 78.8mm/3.1in
Fitting: 4 x M4 holes
Mounting PCD range: Ø104mm/4.1in
Unit weight: 160g/5.65oz
Note
(1)Tested for two hours using a continuous, band-limited pink noise signal as per AES standard. Power calculated on minimum impedance. Loudspeaker tested in free air.
(2)Measured on axis at 1W, 1m in 2pi anechoic environment.
(3)Xmax derived from: (voice coil winding width-gap depth)/2.
