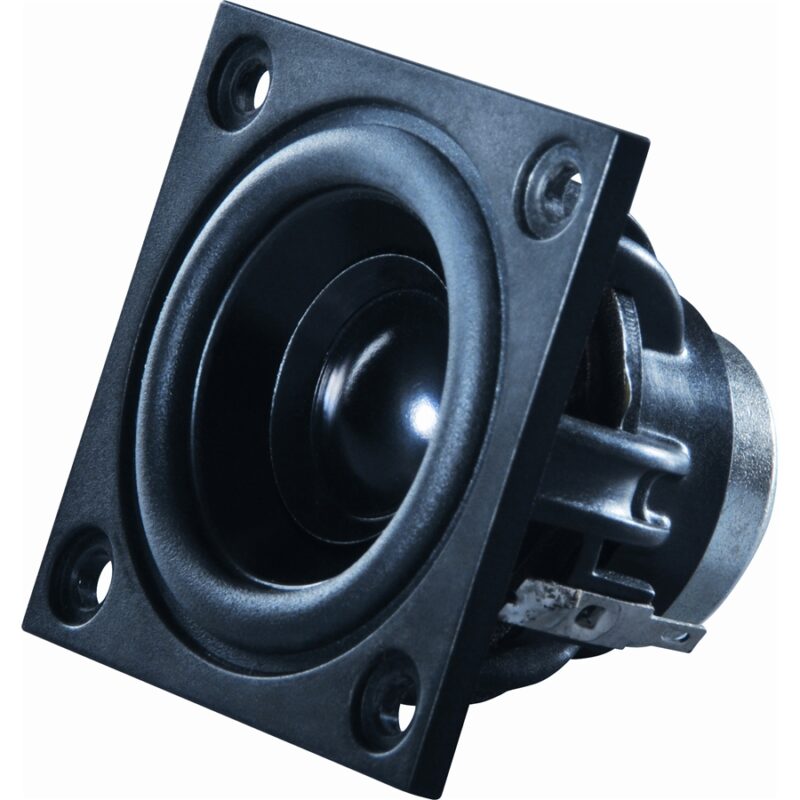

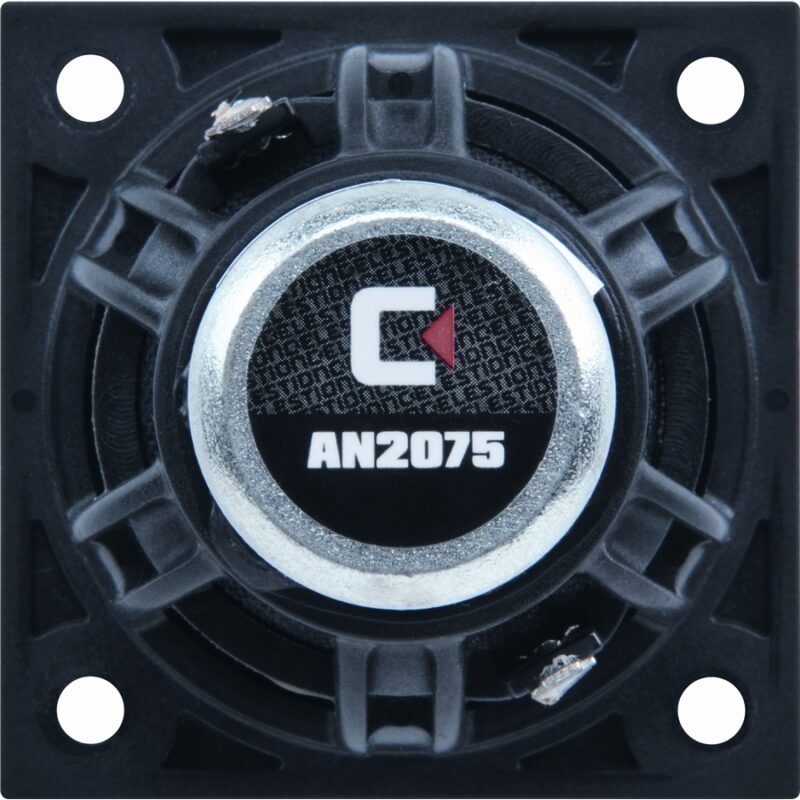

Celestion – AN2075 20W 8ohm – Compact Full Range Loudspeaker – Neodimio
Speaker full-range compatto da 2" con magnete in neodimio, bobina da 0.75", potenza 20Watt, impedenza 8ohm ideale per applicazioni in array e diffusori a colonna
Per una panoramica su tutta la serie Celestion Compact Full Range, clicca qui
Caratteristiche
– Compact and lightweight, full-range neodymium loudspeakers
– Advanced Finite Element Analysis techniques used for acoustic, mechanical and electromagnetic modelling
– Ideal for applications such as portable line arrays where actively controlled wavefront (beam steering) is used
– Delivers wider dispersion to higher frequencies than many equivalent compact, full-range drivers on the market
– Chassis purpose designed for maximum free air movement, with square mounting frame to facilitate close coupling of multiple units
– Stiff and light aluminium cone remains rigid to higher frequencies, delivering a smoother response in the critical listening band
– Half roll elastomer surround provides damping for unwanted resonances and sustained centring control at extremes of excursion
– Designed to be weather resistant for outdoor applications
Specifiche Generali
Nominal diameter: 50mm/2in
Power rating(1): 20Wrms
Nominal impedance: 8ohm
Sensitivity(2): 80dB

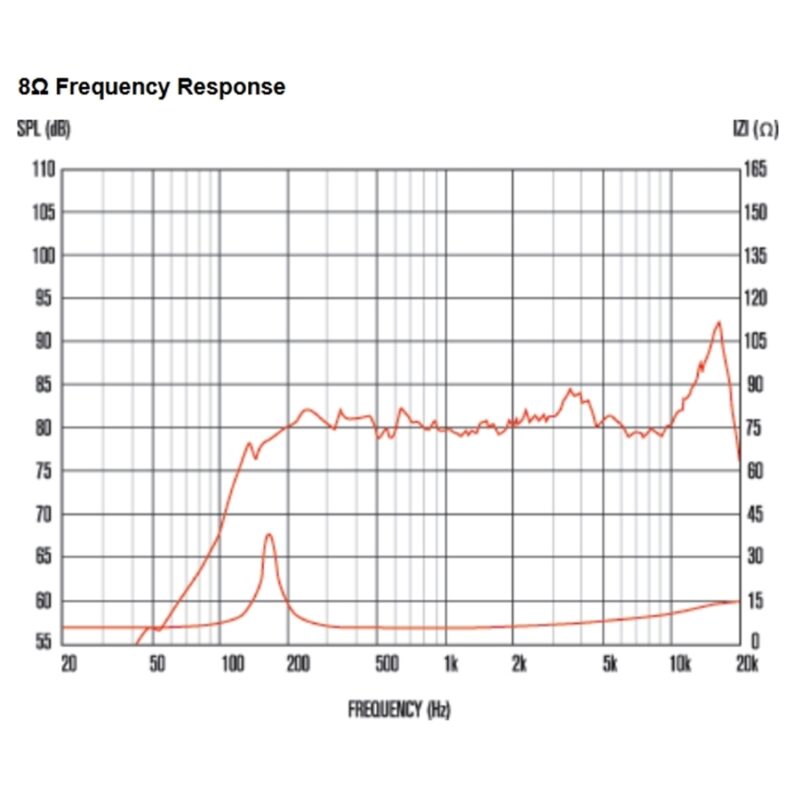

Frequency range: 160Hz-19kHz
Voice coil diameter: 20mm/0.75in
Chassis type: Glass reinforced ABS
Magnet type: Neodymium
Voice coil material: Round Copper
Former material: Polyimide
Cone material: Aluminium
Surround material: Elastomer
Xmax(3): 1.5mm/0.06in
Gap depth: 3mm/0.12in
Voice coil winding width: 6mm/0.24in
Parametri di Thiele-Small
D: 40mm/1.57in
Sd: 12.57cm2/1.94in2
Fs: 160Hz
Mms: 1.37g/0.05oz
Qms: 10.12
Qes: 1.22
Qts: 1.09
Re: 5.28ohm
Vas: 0.12lt/0.004ft3
BI: 2.60Tm
Cms: 0.55mm/N
Informazioni di Montaggio
Overall depth: 43.5mm/1.7in
Overall size: 56.2 x 56.2mm/2.2in x 2.2in
Cut-out diameter: 51.1mm/2.0in
Fitting: 4 x M4 holes
Unit weight: 97g/3.4oz
Note
(1)Tested for two hours using a continuous, band-limited pink noise signal as per AES standard. Power calculated on minimum impedance. Loudspeaker tested in free air.
(2)Measured on axis at 1W, 1m in 2pi anechoic environment.
(3)Xmax derived from: (voice coil winding width-gap depth)/2
